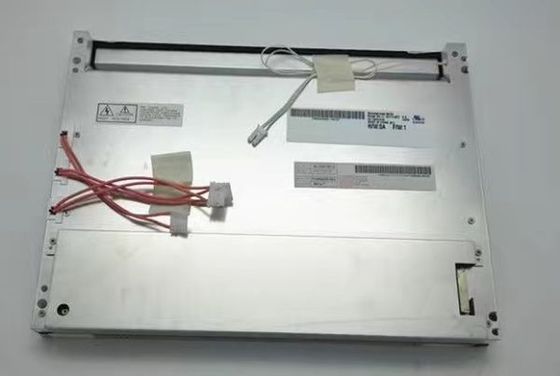

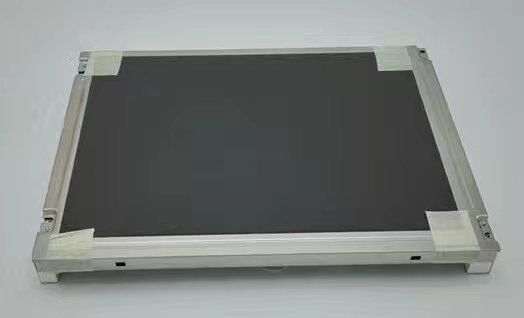

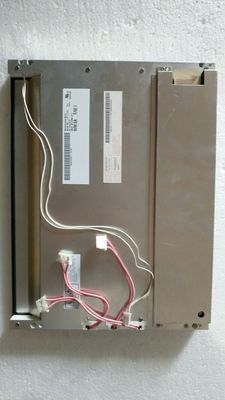

Product Details:
|
MODEL NUMBER: | G104SN05 V0 | BRAND: | AUO |
---|---|---|---|
SIZE: | 10.4INCH | RESOLUTION: | 800×600 RGB |
BRIGHTNESS: | 1500CD/M2 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
High Light: | 6 Bit TFT LCD Panel,LVDS Industrial LCD Screen |
Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
---|---|---|---|---|
G104SN05 V0 | a-Si TFT-LCD , LCM | G104SN05 V.0 | ||
Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
0 ~ 50 °C | -20 ~ 60 °C | - | ||
Used For : | ||||
Specific Features : |
|
Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
---|---|---|---|
1500 (Typ.) | 60/60/40/60 (Typ.)(CR≥10) | 10/25 (Typ.)(Tr/Td) | |
Best View on | Display Mode | Contrast Ratio | |
6 o'clock | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
6116K | 262K (6-bit) | X:0.320; Y:0.330 | |
White Variation : | 1.30 (Max.)(5 points) | ||
Performance : | 3D Tech | Sunlight Visibility | Reflectance |
- | Sunlight Readable | - |
Panel Size : | 10.4" | |||
---|---|---|---|---|
Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
800(RGB)×600 [SVGA] | RGB Vertical Stripe | 0.264×0.264 [96PPI] | 0.088×0.264 | |
Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
211.2(H) × 158.4(V) | 215.6(H) × 162.7(V) | 243(H) × 184(V) | 27.2/28 (Typ./Max.) mm | |
Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
Flat Rectangle | Landscape type | 4:3 (H:V) | ||
Mounting : | Face mounting holes (2-Φ3.5, 2-R1.75) | |||
Other Detail : | Weight | Panel Cover | Treatment | |
530g (Typ.) | - | - |
Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
---|---|---|---|---|---|---|
3.3V (Typ.) | 252.1/253.5mA (Typ./Max.) | - | ||||
Interface Features : | Position | Signal | Type | |||
- | LVDS (1 ch, 6-bit) | Connector | ||||
Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
HRS | DF19K-20P-1H | 1.0 mm | 20 pins | 1 pcs | LVDS-20P1C6B-070A |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
