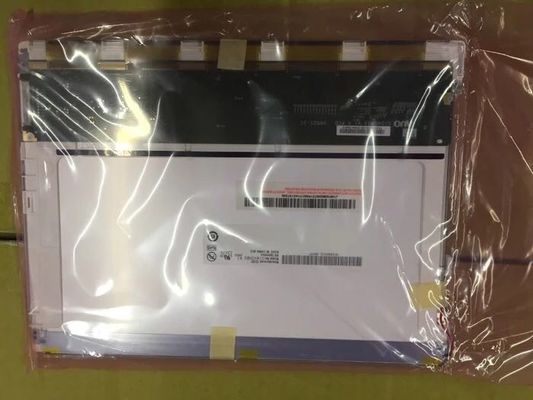

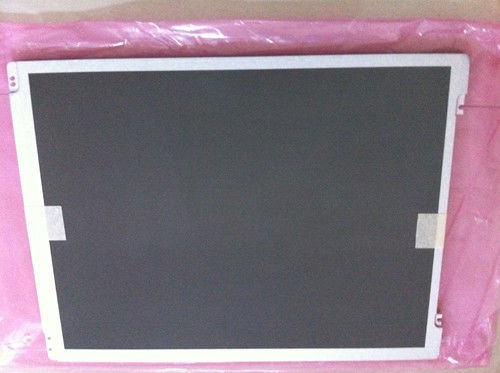

G104SN03 V4 AUO 10.4INCH 800×600RGB 230CD/M2 CCFL LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

G104SN03 V4 AUO 10.4INCH 800×600RGB 230CD/M2 CCFL LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY
G104SN03 V4 AUO 10.4INCH 800×600RGB 230CD/M2 CCFL LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY G104SN03 V4 AUO 10.4INCH 800×600RGB 230CD/M2 CCFL LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Large Image :  G104SN03 V4 AUO 10.4INCH 800×600RGB 230CD/M2 CCFL LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: G104SN03 V4
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 30 pcs / box 13.0 Kgs (Typ.) 448×402×350 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 320PCS
Contact Now

G104SN03 V4 AUO 10.4INCH 800×600RGB 230CD/M2 CCFL LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: G104SN03 V4 BRAND: AUO
SIZE: 10.4INCH RESOLUTION: 800×600 RGB
BRIGHTNESS: 230CD/M2 TEMPERATURE RANGE: Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
Highlight:

6 Bit TFT LCD Panel

,

LVDS Industrial LCD Screen

AUO G104SN03 V4 Application Details

Basic Information :
Brand

Model
G104SN03 V4
Type
a-Si TFT-LCD , LCM
Used For

Screen Size
10.4 inch
Alias
-
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS

Vibration
1.5G (14.7 m/s²)
Typical Features :
  •



AUO G104SN03 V4 Mechanical Details

Pixel Features :
Resolution
800(RGB)×600, SVGA
Dot Pitch(mm)
0.088×0.264 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.264×0.264 (H×V) [96PPI]
Mechanical Size :
Active Area(mm)
211.2(H) × 158.4(V)
Bezel Area(mm)
214.8(H) × 162.0(V)
Outline Dim.(mm)
236(H) × 174.3(V)
Depth(mm)
5.7±0.3
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel
Other Spec :
Weight
TBD
Treatment
Antiglare, Hard coating (3H)



AUO G104SN03 V4 Optical Details

Basic Information :
Luminance(cd/m²)
230 (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
80/80/60/80 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
10/20 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.320; Wy:0.330
Display Colors
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
6116K
White Uniformity
1.33/1.54 (Typ./Max.)(5 points)
1931 Color Gamut :
NTSC Ratio
45%
sRGB
62% coverage
Adobe RGB
47% coverage
DCI-P3
46% coverage
Rec.2020
33% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO G104SN03 V4 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
300mA (Typ.)
Consumption
1.0W (Typ.)
Signal Type :
LVDS (1 ch, 6/8-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
HRS
DF19K-20P-1H
1.0 mm
20 pins
1 pcs
LVDS-20P1C8B-010B



FAQ:

Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

G104SN03 V4 AUO 10.4INCH 800×600RGB 230CD/M2 CCFL LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 0
