G104SN03 V2 AUO 10.4INCH 800×600RGB 180CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

G104SN03 V2 AUO 10.4INCH 800×600RGB 180CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY
G104SN03 V2 AUO 10.4INCH 800×600RGB 180CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY G104SN03 V2 AUO 10.4INCH 800×600RGB 180CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

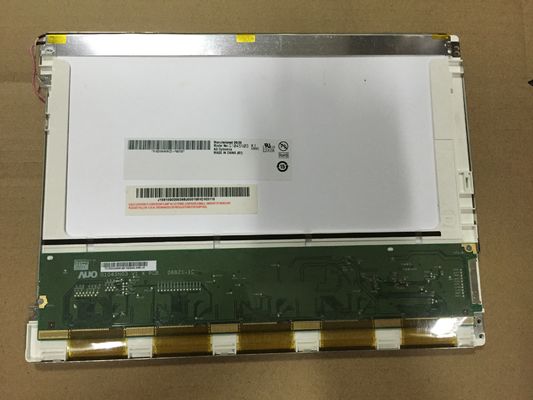

Large Image :  G104SN03 V2 AUO 10.4INCH 800×600RGB 180CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: G104SN03 V2
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 30 pcs / box 13 Kgs 448×402×350 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 500PCS
Contact Now

G104SN03 V2 AUO 10.4INCH 800×600RGB 180CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: G104SN03 V2 BRAND: AUO
SIZE: 10.4INCH RESOLUTION: 800×600 RGB
BRIGHTNESS: 180CD/M2 TEMPERATURE RANGE: Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
Highlight:

6 Bit TFT LCD Panel

,

LVDS Industrial LCD Screen



AUO G104SN03 V2 Application Details

Basic Info :
Panel Brand

Panel Model
G104SN03 V2
Diagonal Size
10.4"
Application

Panel Type
a-Si TFT-LCD , LCM
Model Alias
G104SN03 V.2
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C
RoHS State

Vibration Rating
1.5G (14.7 m/s²)



AUO G104SN03 V2 Mechanical Details

Pixel Features :
Pixel Format
800(RGB)×600, SVGA
Dot Pitch
0.088×0.264 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.264×0.264 mm (H×V) [96PPI]
Mechanical Size :
Display Area
211.2×158.4 mm (H×V)
Bezel Area
215.0×162.0 mm (H×V)
Outline Dim.
236×174.3 mm (H×V)
Outline Depth
7.7 (Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Touch Screen :
Touch Points
1 point
TP Signal
-
TP Controller
Without touch controller
Touchscreen
4-wire Resistive Touch
Holes & Brackets :
Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel
Other Features :
Weight
400±10g
Surface
Antiglare, Hard coating (3H)



AUO G104SN03 V2 Optical Details

Basic Information :
Brightness
180 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
60/60/35/65 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
-
Response Time
10/25 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.320; Wy:0.330
Color Numbers
262K (6-bit)
Color Temperature
6116K
Uniformity
1.33 (Max.)(13 points)
1931 Color Gamlt :
NTSC Ratio
47%
sRGB
64% coverage
Adobe RGB
49% coverage
DCI-P3
48% coverage
Rec.2020
35% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





AUO G104SN03 V2 Backlight Details

Back-light Features :
Lamp Type
CCFL
Amount
1 pcs
Life Time
20K(Typ.) (Hours)
Replacement
-
Lamp Shape
Straight
Position
Edge light type (Top side)
Lamp Electrical :
Voltage Input
560±50V
Current Input
3.0/4.5/5.5mA (Min./Typ./Max.)
Frequency
60KHz (Typ.)
Kick-off Voltage
800/1050V (Max.)(Ta=+25/0℃)
Consumption
2.52W (Typ.)
Interface Features :
Type
Connector
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
BHSR-02VS-1
3.5 mm
2 pins
1 pcs
BLL-2PINS-HL



AUO G104SN03 V2 Interface Detail

Signal Systerm :
LVDS (1 ch, 6-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
260/310mA (Typ./Max.)
Consumption
0.76W (Typ.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
HRS
DF19K-20P-1H
1.0 mm
20 pins
1 pcs
LVDS-20P1C6B-070A

FAQ:

Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
