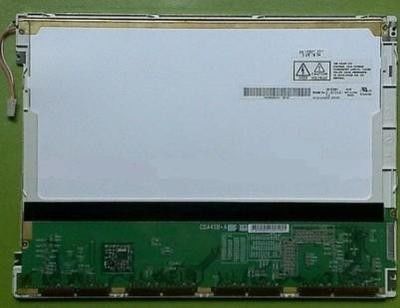

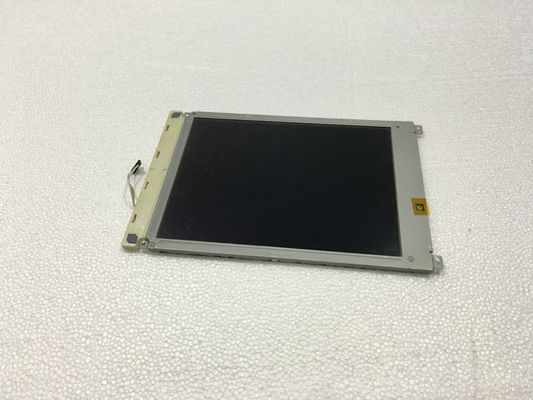

Product Details:
|
| MODEL NUMBER: | G104SN02 V3 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 800×600 RGB |
| BRIGHTNESS: | 400CD/M2 | TEMPERATURE RANGE: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |
| Highlight: | 6 Bit TFT LCD Panel,LVDS Industrial LCD Screen |
||
| Basic Info : | Panel Brand | Panel Model | G104SN02 V3 | |
|---|---|---|---|---|
| Diagonal Size | 10.4" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | G104SN02 V.3 | |
| Reliability : | Operating Temp. | -30 ~ 85 °C | Storage Temp. | -30 ~ 85 °C |
| RoHS State | Vibration Rating | 1.5G (14.7 m/s²) |
| Pixel Features : | Pixel Format | 800(RGB)×600 [SVGA] | Dot Pitch | 0.088×0.264 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.264×0.264 mm (H×V) [96PPI] | |
| Mechanical Size : | Display Area | 211.2×158.4 mm (H×V) | Bezel Area | 214.8×162.7 mm (H×V) |
| Outline Dim. | 243×184 mm (H×V) | Outline Depth | 8.5 (Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
| Other Features : | Weight | 370g (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 10/20 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6638K | White Uniformity | 1.33 (Max.)(5 points) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 4.8W (Typ.) |
| Back-light Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 7S2P | Position | Edge light type (Bottom side) | |
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| E&T | 3808K-F05N-02R | 1.25 mm | 5 pins | 1 pcs | ||
| Driver Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 0.35A (Typ.) | ||
| Consumption | 4.2W (Typ.) | |||||
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 280mA (Typ.) | ||
| Consumption | 0.924W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STM | MSB24013P20HA | 1.0 mm | 20 pins | 1 pcs | LVDS-20P1C8B-080A | |
