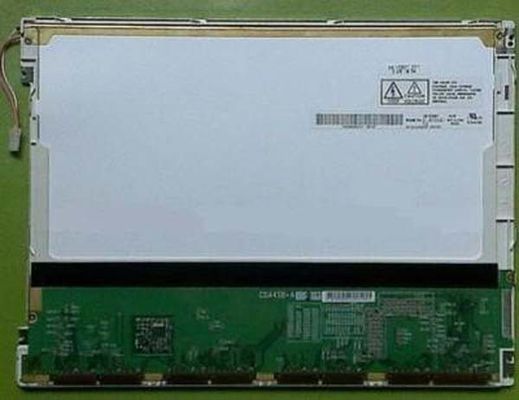

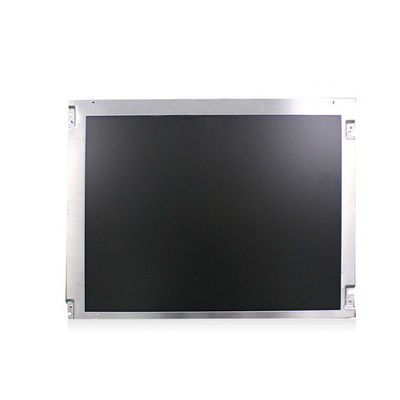

Product Details:
|
| MODEL NUMBER: | G104SN02 V0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 800×600 RGB |
| BRIGHTNESS: | 400CD/M2 | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| High Light: | 6 Bit TFT LCD Panel,LVDS Industrial LCD Screen |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| G104SN02 V0 | a-Si TFT-LCD , LCM | G104SN02 V.0 | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C | - |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Typ.) | 60/60/40/60 (Typ.)(CR≥10) | 10/25 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6116K | 262K (6-bit) | X:0.320; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 65% | 51% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 50% | 36% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.30 (Max.)(9 points) | ||
| Panel Size : | 10.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×600 [SVGA] | RGB Vertical Stripe | 0.264×0.264 [96PPI] | 0.088×0.264 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 211.2(H) × 158.4(V) | 215.6(H) × 162.7(V) | 243(H) × 184(V) | 10.6/11.0 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 485g (Typ.) | - | - | ||
| Reverse Scan : | No |
|---|---|
| Vertical Frequency : | 60Hz |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | 2 pcs | Straight | 50K(Min.) | - | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 480±24V | 3.0/6.0/7.0mA (Min./Typ./Max.) | 8.3W (Typ.) | ||||
| Operating Frequency | Kick-off Voltage | |||||
| 50KHz (Typ.) | 725/905V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 1 pcs | BLL-3PINS-LHH | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 260/310mA (Typ./Max.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | DF19K-20P-1H | 1.0 mm | 20 pins | 1 pcs | LVDS-20P1C6B-070A | |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
