Product Details:
|

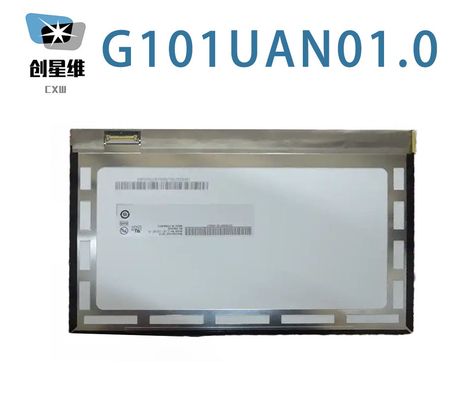

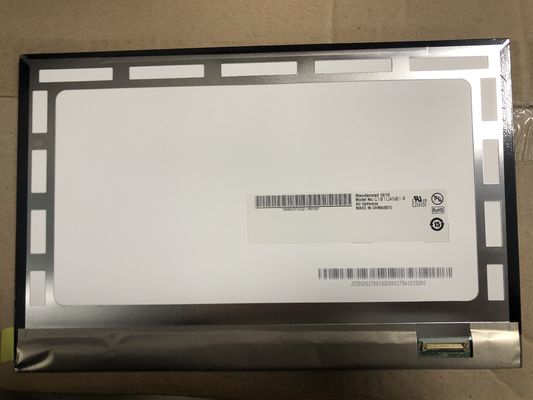

| MODEL NUMBER: | G101UAN01.0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 10.1INCH | RESOLUTION: | 1920×1200RGB |
| BRIGHTNESS: | 380CD/M2 | TEMPERATURE RANGE: | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | 6 Bit TFT LCD Panel,LVDS Industrial LCD Screen |
||
| Basic Detail : | Manufacturer | Model Name | G101UAN01.0 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 10.1 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -10 ~ 60 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.5G (14.7 m/s²) | RoHS | ||
| Features : | ||||
| Remarks : | eDP1.2 | |||
| Basic Information : | Luminance | 380 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.43 (Max.)(5 points) | |
| 1931 Color Gamut : | NTSC Ratio | 52% | sRGB | 71% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 54% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1200 [WUXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.038×0.113 mm | Pixel Pitch(W×H) | 0.113×0.113 mm [224PPI] | |
| Physical Size : | Active Viewing | 216.81(W)×135.5(H) mm | Overall Dim. | 227.72(W)×147.8(H) mm |
| Bezel Opening | - | Overall Depth | 2.45/5.35 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 140g (Max.) | Surface | Hard coating |
| Signal Electrical : | Input Current | 200/240mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.66/0.79W (Typ./Max.) | Signal Interface | eDP (2 Lanes), eDP1.2 | |||
| Interface Features : | Position |  |
Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| I-PEX | 20455-030E-12 | 1 pcs | 0.5 mm | 30 pins | EDP-30P2L-020A | |
