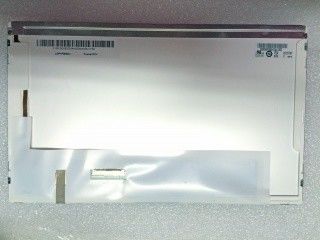

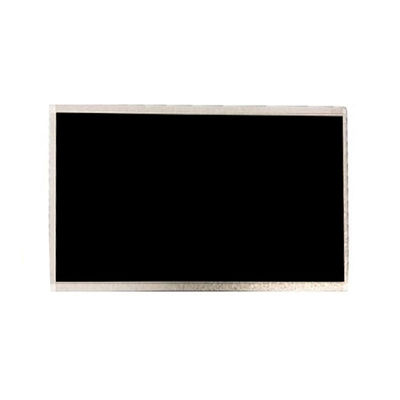

G101EVT05.1 AUO 10.1INCH 1280×800RGB 440CD/M2 WLED LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

G101EVT05.1 AUO 10.1INCH 1280×800RGB 440CD/M2 WLED LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY
G101EVT05.1 AUO 10.1INCH 1280×800RGB 440CD/M2 WLED LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY G101EVT05.1 AUO 10.1INCH 1280×800RGB 440CD/M2 WLED LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

Large Image :  G101EVT05.1 AUO 10.1INCH 1280×800RGB 440CD/M2 WLED LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: G101EVT05.1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 22 pcs / box
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 400PCS
Contact Now

G101EVT05.1 AUO 10.1INCH 1280×800RGB 440CD/M2 WLED LVDS Operating Temperature: -20 ~ 70 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: G101EVT05.1 BRAND: AUO
SIZE: 10.1INCH RESOLUTION: 1280×800RGB
BRIGHTNESS: 440CD/M2 TEMPERATURE RANGE: Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
High Light:

6 Bit TFT LCD Panel

,

LVDS Industrial LCD Screen



AUO G101EVT05.1 Application Details

Basic Info :
Panel Brand

Panel Model
G101EVT05.1
Diagonal Size
10.1"
Application

Panel Type
a-Si TFT-LCD , LCM
Model Alias
G101EVT05 V1
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State

Vibration Rating
-



AUO G101EVT05.1 Mechanical Details

Pixel Features :
Pixel Format
1280(RGB)×800, WXGA
Dot Pitch
0.0565×0.1695 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.1695×0.1695 mm (H×V) [149PPI]
Mechanical Size :
Display Area
216.96×135.6 mm (H×V)
Bezel Area
-
Outline Dim.
257.35×175.5 mm (H×V)
Outline Depth
7.6 (Typ.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:10 (H:V)
Shape Style

Touch Screen :
Touch Points
-
TP Signal
I²C & USB
TP Controller
With touch controller
Touchscreen
PCAP
Other Features :
Weight
350g (Max.)
Surface
Antiglare (Haze 3%), Hard coating (3H), Reflection 1.5% (Max.)
Panel Cover
With Cover Lens



AUO G101EVT05.1 Optical Details

Basic Information :
Brightness
440 cd/m² (Typ.)
Contrast Ratio
1300:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Optical Mode
MVA, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
6485K
Uniformity
1.43 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
47%
sRGB
66% coverage
Adobe RGB
49% coverage
DCI-P3
49% coverage
Rec.2020
35% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO G101EVT05.1 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
50K(Min.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
With LED Driver
Driver Electrical :
Voltage Input
12.0V (Typ.)
Current Input
300/480mA (Typ./Max.)
Consumption
3.6/5.76W (Typ./Max.)

AUO G101EVT05.1 Interface Detail

Signal Systerm :
LVDS (1 ch, 6/8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
192/270mA (Typ./Max.)
Consumption
0.63/0.89W (Typ./Max.)
Interface Features :
Type
Connector
Position

Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
HRS
FH41-40S-0.5SH(05)
0.5 mm
40 pins
1 pcs

FAQ:



Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?





A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
