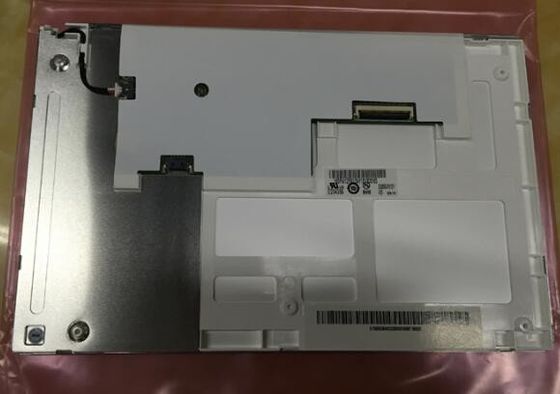

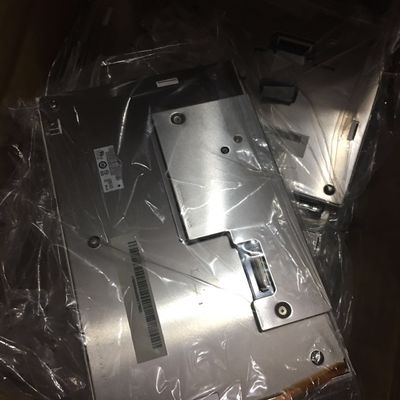

Product Details:
|
| MODEL NUMBER: | G085VW01 V3 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 8.5INCH | RESOLUTION: | 800×480 RGB |
| BRIGHTNESS: | 200CD/M2 | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 70 °C |
| High Light: | 6 Bit TFT LCD Panel,LVDS Industrial LCD Screen |
||
| Basic Information : | Brand | Model | G085VW01 V3 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 8.5" | Alias | G085VW01 V.3 | |
| Environment : | Storage Temp. | -20 ~~ 70 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) | ||
| Typical Features : |
|
|||
| Remarks : | Mass production from Feb. 2011 | |||
| Pixel Features : | Resolution | 800(RGB)×480, WVGA | Dot Pitch(mm) | 0.077×0.231 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.231×0.231 (H×V) [109PPI] | |
| Mechanical Size : | Active Area(mm) | 184.8(H) × 110.88(V) | Bezel Area(mm) | 189.8(H) × 115.88(V) |
| Outline Dim.(mm) | 210(H) × 134(V) | Depth(mm) | 10.0±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 15:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Rear mounting holes | |||
| Other Spec : | Weight | 320g (Typ.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 200 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 20/10 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.300; Y:0.320 | Display Colors | 262K (6-bit) |
| Color Temperature | 7351K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 49% | sRGB | 69% coverage |
| Adobe RGB | 51% coverage | DCI-P3 | 51% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 135/150/200mA (Min./Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.5W (Typ.) | |||||
| Signal Type : | CMOS (1 ch, 6-bit) | Signal Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STARCONN | 089H40-001100-G2-R | 1 pcs | 40 pins | 0.5 mm | DRGB-40P1C6B-050B | |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
