G084SN05 V8 AUO 8.4INCH 800×600RGB 450CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

G084SN05 V8 AUO 8.4INCH 800×600RGB 450CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
G084SN05 V8 AUO 8.4INCH 800×600RGB 450CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY G084SN05 V8 AUO 8.4INCH 800×600RGB 450CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Large Image :  G084SN05 V8 AUO 8.4INCH 800×600RGB 450CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: G084SN05 V8
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 30 pcs / box 9.5 Kgs 405×328×301 mm (L×W×H)
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 200PCS
Contact Now

G084SN05 V8 AUO 8.4INCH 800×600RGB 450CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: G084SN05 V8 BRAND: AUO
SIZE: 8.4INCH RESOLUTION: 800×600 RGB
BRIGHTNESS: 450CD/M2 TEMPERATURE RANGE: Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C
Highlight:

6 Bit TFT LCD Panel

,

LVDS Industrial LCD Screen



AUO G084SN05 V8 Application Details

Basic Information :
Brand

Model
G084SN05 V8
Type
a-Si TFT-LCD , LCM
Used For

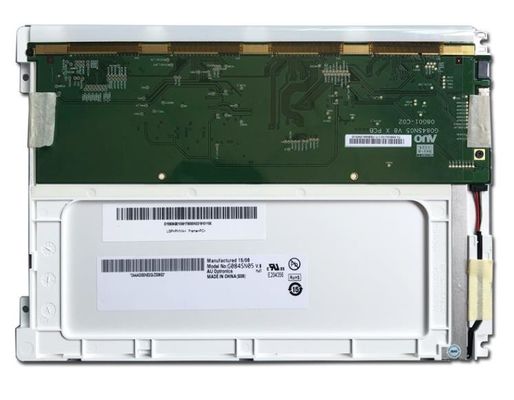

  • G084SN05 V8 AUO 8.4INCH 800×600RGB 450CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY 0
Screen Size
8.4 inch
Alias
G084SN05 V.8
Environment :
Storage Temp.
-30 ~ 85 °C
Operating Temp.
-30 ~ 85 °C
RoHS

1.5G (14.7 m/s²)Vibration



AUO G084SN05 V8 Mechanical Details

Pixel Features :
Resolution
800(RGB)×600, SVGA
Dot Pitch(mm)
0.071×0.213 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.213×0.213 (H×V) [119PPI]
Mechanical Size :
Active Area(mm)
170.4(H) × 127.8(V)
Bezel Area(mm)
174.15(H) × 131.2(V)
Outline Dim.(mm)
203(H) × 142.5(V)
Depth(mm)
8.3 (Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (2-Φ3.0, 2-R1.5) on left, right bezel
Other Spec :
Weight
250±10g
Treatment
Antiglare, Hard coating (3H)



AUO G084SN05 V8 Optical Details

Basic Information :
Luminance(cd/m²)
450 (Typ.)
Contrast Ratio
600:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/60 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
12 o'clock
Response(ms)
20/10 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.310; Wy:0.330
Display Colors
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
6638K
White Uniformity
1.33 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
43%
sRGB
60% coverage
Adobe RGB
45% coverage
DCI-P3
45% coverage
Rec.2020
32% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO G084SN05 V8 Electronics Details

Frame Rate :
60Hz
Reverse Scan :
Yes (U/D, L/R)
Total Consumption:
4.2W (Typ.)



AUO G084SN05 V8 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
270/330mA (Typ./Max.)
Consumption
0.9/1.2W (Typ./Max.)
Signal Type :
LVDS (1 ch, 6/8-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
STM
MSB24013P20HA
1.0 mm
20 pins
1 pcs
LVDS-20P1C8B-140A



AUO G084SN05 V8 Backlight Details

Backlight Features :
Type
WLED
Quantity
2 strings
Position
Edge light type (Bottom side)
Replacement
Replaceable
Shape
2 strings
Life Time
50K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
38.4/43.8V (Typ./Max.)
Current Supply
40/42mA (Typ./Max.)
Consumption
3.07W (Typ.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
E&T
3808K-F04N-02R
1.25 mm
4 pins
1 pcs

Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
12.0V (Typ.)
Current Supply
0.27A (Typ.)
Consumption
3.24/3.40W (Typ./Max.)

FAQ:

Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

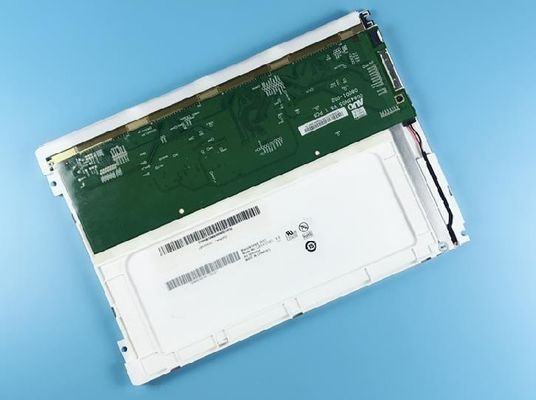

G084SN05 V8 AUO 8.4INCH 800×600RGB 450CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY 1
