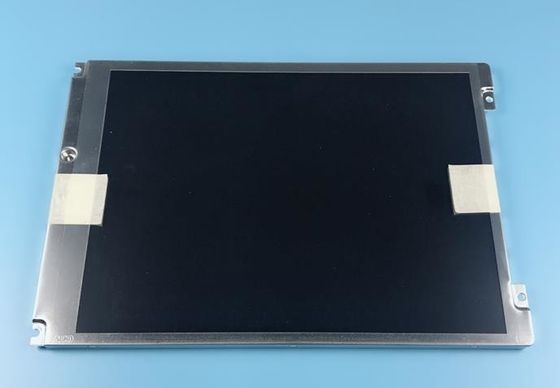

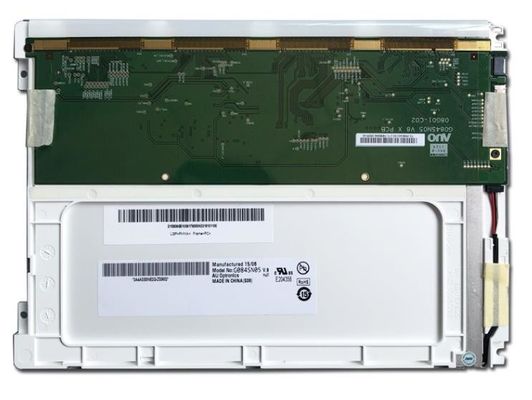

G084SN05 V7 AUO 8.4INCH 800×600RGB 450CD/M2 CCFL LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

G084SN05 V7 AUO 8.4INCH 800×600RGB 450CD/M2 CCFL LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
G084SN05 V7 AUO 8.4INCH 800×600RGB 450CD/M2 CCFL LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY G084SN05 V7 AUO 8.4INCH 800×600RGB 450CD/M2 CCFL LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY G084SN05 V7 AUO 8.4INCH 800×600RGB 450CD/M2 CCFL LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Large Image :  G084SN05 V7 AUO 8.4INCH 800×600RGB 450CD/M2 CCFL LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: G084SN05 V7
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 30 pcs / box 9.6 Kgs 405×328×301 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 180PCS
Contact Now

G084SN05 V7 AUO 8.4INCH 800×600RGB 450CD/M2 CCFL LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: G084SN05 V7 BRAND: AUO
SIZE: 8.4INCH RESOLUTION: 800×600 RGB
BRIGHTNESS: 450CD/M2 TEMPERATURE RANGE: Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C
Highlight:

6 Bit TFT LCD Panel

,

LVDS Industrial LCD Screen

AUO G084SN05 V7 Application Details

Basic Info :
Panel Brand

Panel Model
G084SN05 V7
Diagonal Size
8.4"
Application

Panel Type
a-Si TFT-LCD , LCM
Model Alias
G084SN05 V.7
Reliability :
Operating Temp.
-30 ~ 85 °C
Storage Temp.
-30 ~ 85 °C
RoHS State

Vibration Rating
1.5G (14.7 m/s²)
Specific Features :
  •
Remarks :
Mass Production: May 2008, EOL: Jan. 2012, Last Time Buy: Oct. 2011



AUO G084SN05 V7 Mechanical Details

Pixel Features :
Pixel Format
800(RGB)×600, SVGA
Dot Pitch
0.071×0.213 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.213×0.213 mm (H×V) [119PPI]
Mechanical Size :
Display Area
170.4×127.8 mm (H×V)
Bezel Area
174.15×131.2 mm (H×V)
Outline Dim.
203×142.5 mm (H×V)
Outline Depth
8.0±0.3 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Face mounting holes (2-Φ3.0, 2-R1.5) on left, right bezel
Other Features :
Weight
260±10g
Surface
Antiglare, Hard coating (3H)



AUO G084SN05 V7 Optical Details

Basic Information :
Brightness
450 cd/m² (Typ.)
Contrast Ratio
600:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/60 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
12 o'clock
Response Time
20/10 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.310; Wy:0.330
Color Numbers
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
6638K
Uniformity
1.43 (Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
45%
sRGB
62% coverage
Adobe RGB
47% coverage
DCI-P3
47% coverage
Rec.2020
34% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO G084SN05 V7 Interface Detail

Signal Systerm :
LVDS (1 ch, 6/8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
270/330mA (Typ./Max.)
Consumption
0.9/1.2W (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
STM
MSB24013P20
1.0 mm
20 pins
1 pcs
LVDS-20P1C8B-140A
