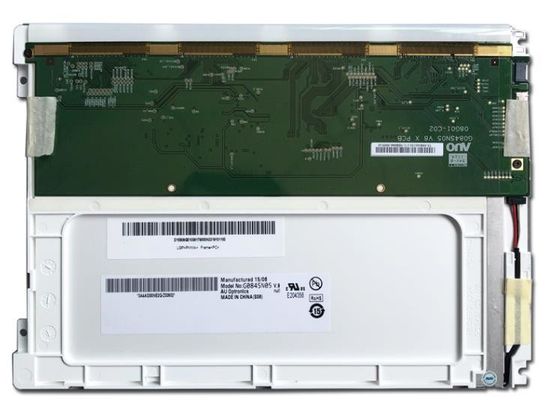

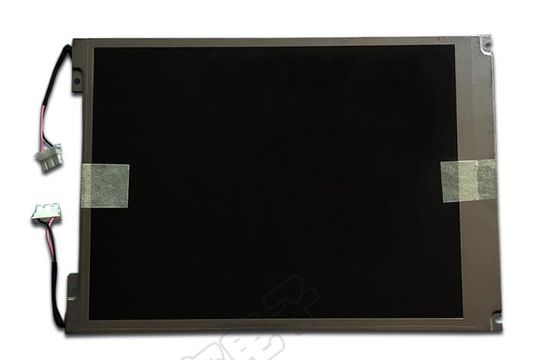

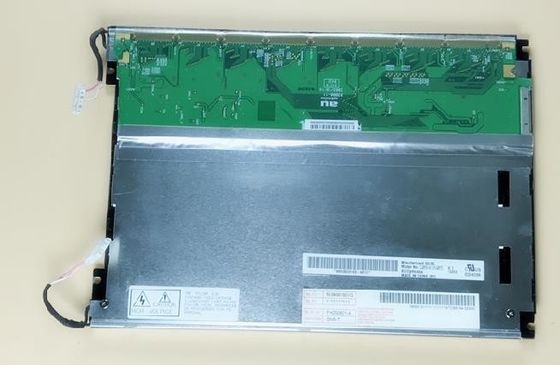

Product Details:
|
| MODEL NUMBER: | G084SN05 V3 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 8.4INCH | RESOLUTION: | 800×600 RGB |
| BRIGHTNESS: | 450CD/M2 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | 6 Bit TFT LCD Panel,LVDS Industrial LCD Screen |
||
| Basic Detail : | Manufacturer |  |
Model Name | G084SN05 V3 |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | G084SN05 V.3 | |
| Panel Size | 8.4 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.5G (14.7 m/s²) | RoHS | |
| Basic Information : | Luminance | 450 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 12 o'clock | Response Speed | 10/25 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 60/60/60/40 (Typ.)(CR≥10) |
Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 262K (6-bit) |
| Color Temperature | 6638K | White Uniformity | 1.60 (Max.)(9 points) |
|
| 1931 Color Gamlt : | NTSC Ratio | 46% | sRGB | 64% coverage |
| Adobe RGB | 48% coverage | DCI-P3 | 48% coverage | |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 800(RGB)×600 [SVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.071×0.213 mm | Pixel Pitch(W×H) | 0.213×0.213 mm [119PPI] | |
| Physical Size : | Active Viewing | 170.4(W)×127.8(H) mm | Overall Dim. | 203(W)×142.5(H) mm |
| Bezel Opening | 174.6(W)×131.2(H) mm | Overall Depth | 8.3 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (2-Φ3.0, 2-R1.5) on left, right bezel | |||
| Other Detail : | Mass | 260±10g | Surface | - |
| Refresh Rate : | 60Hz Reverse Scan :
| No |
|---|---|---|
| Power Consumption : | 5.8W (Typ.) |
| Signal Electrical : | Input Current | 230mA (Typ.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.76W (Typ.) | Signal Interface | LVDS (1 ch, 6-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF19K-20P-1H | 1 pcs | 1.0 mm | 20 pins | LVDS-20P1C6B-070A | |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 2 pcs | Life | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 4.0/6.0/7.0mA (Min./Typ./Max.) | Input Voltage | 363.6/400/440V (Min./Typ./Max.) | ||
| Frequency | 40/55/80KHz (Min./Typ./Max.) | Turn-on Voltage | 670/870V (Max.)(Ta=+25/0℃) | |||
| Consumption | 4.36/4.8/5.28W (Min./Typ./Max.) |
|||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-03VS-1 | 2 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 30 pcs / box | 606×359×225 mm | TBD |
