G084SN05 V1 AUO 8.4INCH 800×600RGB 280CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

G084SN05 V1 AUO 8.4INCH 800×600RGB 280CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY
G084SN05 V1 AUO 8.4INCH 800×600RGB 280CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY G084SN05 V1 AUO 8.4INCH 800×600RGB 280CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

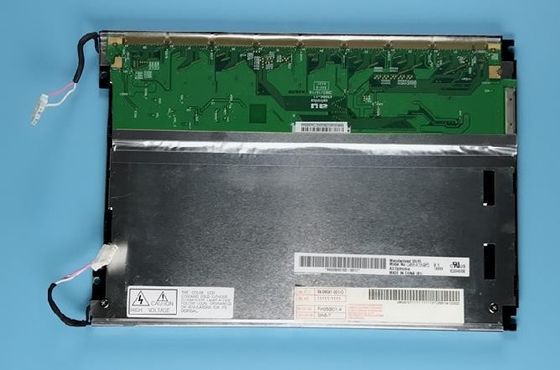

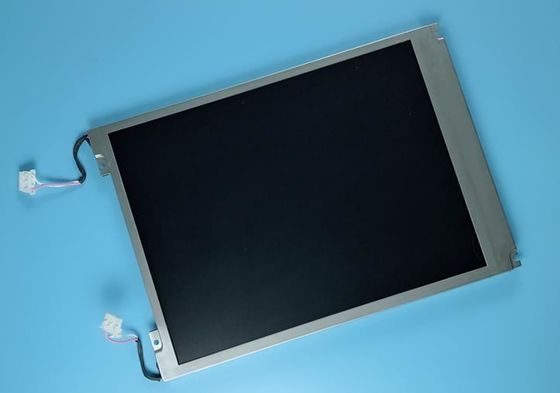

Large Image :  G084SN05 V1 AUO 8.4INCH 800×600RGB 280CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: G084SN05 V1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD70
Packaging Details: 30 pcs / box 12 Kgs 405×328×301 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 200PCS
Contact Now

G084SN05 V1 AUO 8.4INCH 800×600RGB 280CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: G084SN05 V1 BRAND: AUO
SIZE: 8.4INCH RESOLUTION: 800×600 RGB
BRIGHTNESS: 280CD/M2 TEMPERATURE RANGE: Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
High Light:

6 Bit TFT LCD Panel

,

LVDS Industrial LCD Screen

AUO G084SN05 V1 Application Details

Basic Detail :
Manufacturer
G084SN05 V1 AUO 8.4INCH 800×600RGB 280CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY 0
Model Name
G084SN05 V1
Panel Type
a-Si TFT-LCD , LCM
Another Name
G084SN05 V.1
Panel Size
8.4 inch
Designed For
  • G084SN05 V1 AUO 8.4INCH 800×600RGB 280CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY 1
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C
RoHS
G084SN05 V1 AUO 8.4INCH 800×600RGB 280CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY 2
Vibration Level
1.5G (14.7 m/s²)



AUO G084SN05 V1 Optical Details

Basic Detail :
Luminance
280 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Good View at
12 o'clock
Response Speed
10/25 (Typ.)(Tr/Td) ms
Viewing Angle
60/60/60/40 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.310; Wy:0.330
Support Color
262K (6-bit)
Color Temperature
6638K
White Variation
1.60 (Max.)(9 points) G084SN05 V1 AUO 8.4INCH 800×600RGB 280CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY 3
1931 Color Gamlt :
NTSC Ratio
47%
sRGB
64% coverage
Adobe RGB
49% coverage
DCI-P3
48% coverage
Rec.2020
35% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO G084SN05 V1 Mechanical Details

Pixel Features :
Number of Pixel
800(RGB)×600, SVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.071×0.213 mm
Pixel Pitch(W×H)
0.213×0.213 mm [119PPI]
Physical Size :
Active Viewing
170.4(W)×127.8(H) mm
Overall Dim.
203(W)×142.5(H) mm
Bezel Opening
174.15(W)×131.2(H) mm
Overall Depth
9.8±0.3 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Touchscreen :
TP Controller
-
TP Interface
-
Touch Points
-
TP Technology
4-wire Resistive Touch
Fixation :
Face mounting holes (2-Φ3.0, 2-R1.5) on left, right bezel
Other Detail :
Mass
340±10g
Surface
-



AUO G084SN05 V1 Electronics Details

Refresh Rate :
60Hz Reverse Scan :
No
Total Consumption :
5.8W (Typ.)



AUO G084SN05 V1 Interface Detail

Signal Electrical :
Input Current
230mA (Typ.)
Input Voltage
3.3V (Typ.)
Consumption
0.76W (Typ.)
Signal Interface
LVDS (1 ch, 6-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment G084SN05 V1 AUO 8.4INCH 800×600RGB 280CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY 5
HRS
DF19K-20P-1H
1.0 mm
20 pins
1 pcs
LVDS-20P1C6B-070A



AUO G084SN05 V1 Lightting Details

Lamp Features :
Lamp Type
CCFL
Amount
2 pcs
Position
Edge light type (Top and Bottom)
Exchange
-
Lamp Shape
Straight
Lamp Life
50K(Typ.) (Hours)
Lamp Electrical :
Input Voltage
363.6/400/440V (Min./Typ./Max.)
Input Current
4.0/6.0/7.0mA (Min./Typ./Max.)
Frequency
40/55/80KHz (Min./Typ./Max.)
Turn-on Voltage
670/870V (Max.)(Ta=+25/0℃)
Consumption
4.36/4.8/5.28W (Min./Typ./Max.) G084SN05 V1 AUO 8.4INCH 800×600RGB 280CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY 6
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment G084SN05 V1 AUO 8.4INCH 800×600RGB 280CD/M2 CCFL LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY 7
JST
BHR-03VS-1
4.0 mm
3 pins
2 pcs
BLL-3PINS-HNL
Backlight Driver :
No



AUO G084SN05 V1 Packing Details

Package Box : Amount Size (L×W×H) Weight
30 pcs / box 12 Kgs 405×328×301 mm
