G084SN03 V2 AUO 8.4INCH 800×600RGB 180CD/M2 CCFL LVDS Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY

G084SN03 V2 AUO 8.4INCH 800×600RGB 180CD/M2 CCFL LVDS Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY
G084SN03 V2 AUO 8.4INCH 800×600RGB 180CD/M2 CCFL LVDS Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY G084SN03 V2 AUO 8.4INCH 800×600RGB 180CD/M2 CCFL LVDS Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY G084SN03 V2 AUO 8.4INCH 800×600RGB 180CD/M2 CCFL LVDS Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY

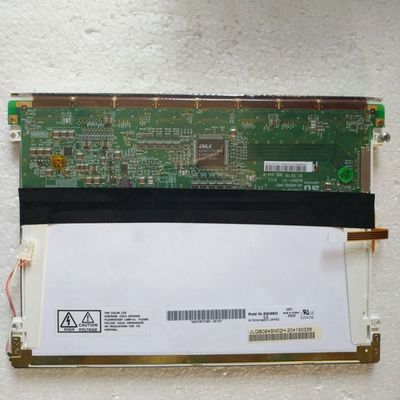

Large Image :  G084SN03 V2 AUO 8.4INCH 800×600RGB 180CD/M2 CCFL LVDS Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: G084SN03 V2
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD70
Packaging Details: 30 pcs / box 12 Kgs 600×353×210 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 332PCS
Contact Now

G084SN03 V2 AUO 8.4INCH 800×600RGB 180CD/M2 CCFL LVDS Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: G084SN03 V2 BRAND: AUO
SIZE: 8.4INCH RESOLUTION: 800×600 RGB
BRIGHTNESS: 180CD/M2 TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

LVDS Industrial LCD Screen

,

Transmissive AUO TFT LCD

AUO G084SN03 V2 Application Details

Basic Detail :
Manufacturer
G084SN03 V2 AUO 8.4INCH 800×600RGB 180CD/M2 CCFL LVDS Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY 0
Model Name
G084SN03 V2
Panel Type
a-Si TFT-LCD , LCM
Another Name
G084SN03 V.2
Panel Size
8.4 inch
Designed For
  • G084SN03 V2 AUO 8.4INCH 800×600RGB 180CD/M2 CCFL LVDS Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY 1
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C
RoHS
G084SN03 V2 AUO 8.4INCH 800×600RGB 180CD/M2 CCFL LVDS Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY 2
Vibration Level
1.0G (9.8 m/s²)



AUO G084SN03 V2 Optical Details

Basic Detail :
Luminance
180 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Good View at
12 o'clock
Response Speed
10/25 (Typ.)(Tr/Td) ms
Viewing Angle
65/65/65/45 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.310; Wy:0.330
Support Color
262K (6-bit)
Color Temperature
6638K
White Variation
1.60 (Max.)(9 points) G084SN03 V2 AUO 8.4INCH 800×600RGB 180CD/M2 CCFL LVDS Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY 3
1931 Color Gamlt :
NTSC Ratio
48%
sRGB
66% coverage
Adobe RGB
50% coverage
DCI-P3
49% coverage
Rec.2020
36% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO G084SN03 V2 Mechanical Details

Pixel Features :
Number of Pixel
800(RGB)×600, SVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.071×0.213 mm
Pixel Pitch(W×H)
0.213×0.213 mm [119PPI]
Physical Size :
Active Viewing
170.4(W)×127.8(H) mm
Overall Dim.
203(W)×142.5(H) mm
Bezel Opening
174.0(W)×131.3(H) mm
Overall Depth
7.5 (Typ.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Touchscreen :
TP Controller
-
TP Interface
-
Touch Points
-
TP Technology
4-wire Resistive Touch
Fixation :
Face mounting holes (2-Φ3.0, 2-R1.5)
Other Detail :
Mass
300±10g
Surface
-



AUO G084SN03 V2 Electronics Details

Refresh Rate :
60Hz Reverse Scan :
No
Total Consumption :
3.3W (Typ.)



AUO G084SN03 V2 Interface Detail

Signal Electrical :
Input Current
230mA (Typ.)
Input Voltage
3.3V (Typ.)
Consumption
0.76W (Typ.)
Signal Interface
LVDS (1 ch, 6-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment G084SN03 V2 AUO 8.4INCH 800×600RGB 180CD/M2 CCFL LVDS Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY 5
HRS
DF19K-20P-1H
1.0 mm
20 pins
1 pcs
LVDS-20P1C6B-070A



AUO G084SN03 V2 Lightting Details

Lamp Features :
Lamp Type
CCFL
Amount
1 pcs
Position
Edge light type (Bottom side)
Exchange
-
Lamp Shape
-
Lamp Life
20K(Typ.) (Hours)
Lamp Electrical :
Input Voltage
490±49V
Input Current
3.0/4.6mA (Min./Typ.)
Frequency
50/60/80KHz (Min./Typ./Max.)
Turn-on Voltage
820/1070V (Max.)(Ta=+25/0℃)
Consumption
2.3W (Typ.) G084SN03 V2 AUO 8.4INCH 800×600RGB 180CD/M2 CCFL LVDS Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY 6
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment G084SN03 V2 AUO 8.4INCH 800×600RGB 180CD/M2 CCFL LVDS Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY 7
JST
BHSR-02VS-1
3.5 mm
2 pins
1 pcs
BLL-2PINS-HL
Backlight Driver :
No



AUO G084SN03 V2 Packing Details

Package Box : Amount Size (L×W×H) Weight
30 pcs / box 12 Kgs 600×353×210 mm
