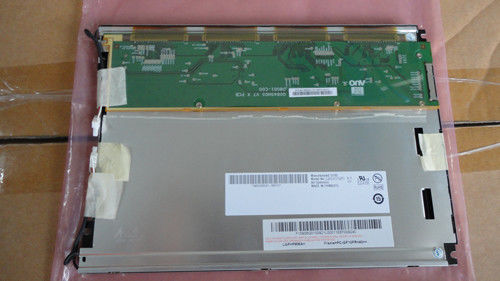

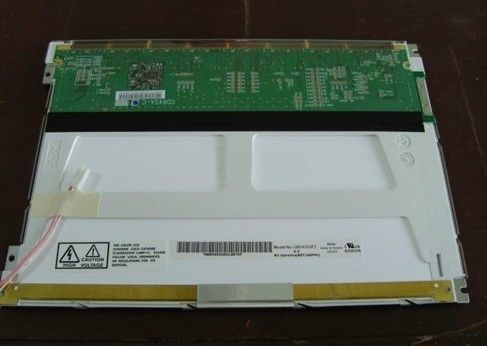

Product Details:
|
| MODEL NUMBER: | G084SN03 V1 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 8.4INCH | RESOLUTION: | 800×600 RGB |
| BRIGHTNESS: | 250CD/M2 | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
| High Light: | LVDS Industrial LCD Screen,Transmissive AUO TFT LCD |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
 |
G084SN03 V1 | a-Si TFT-LCD , LCM | G084SN03 V.1 | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
|
-30 ~ 85 °C | -30 ~ 85 °C | - |
| Panel Size : | 8.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.071×0.213 mm | 0.213×0.213 mm [119PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 170.4×127.8 mm | 173.8×131.2 mm | 203×142.5 mm | 6.0 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (2-Φ3.0, 2-R1.5) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 200±10g | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 250 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/60 (Typ.)(CR≥10) | 12 o'clock | 20/10 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6638K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.310; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 46% | 64% | 48% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 48% | 34% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.43 (Max.)(9 points) |
||
| Frame Rate : | 60Hz Reverse Scan :
| Yes (U/D, L/R) |
|---|
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 300/330mA (Typ./Max.) | 3.3V (Typ.) | 1W (Typ.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (1 ch, 6/8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| STM | MSB24013P20 | 1 pcs | 1.0 mm | 20 pins | LVDS-20P1C8B-140A | |
| Backlight Features: | Type | Position | Shape | Amount |
Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Bottom side) | - | 1 pcs | 30K(Min.) | Replaceable | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption |
|||
| 3.0/4.6/7.0mA (Min./Typ./Max.) | 410/460/530V (Min./Typ./Max.) | 1.23/2.12/3.71W (Min./Typ./Max.) | ||||
| Turn-on Voltage | Lamp Frequency | |||||
| 890/1150V (Max.)(Ta=+25/0℃) | 40/50/60KHz (Min./Typ./Max.) | |||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHSR-02VS-1 | 1 pcs | 3.5 mm | 2 pins | BLL-2PINS-HL | |

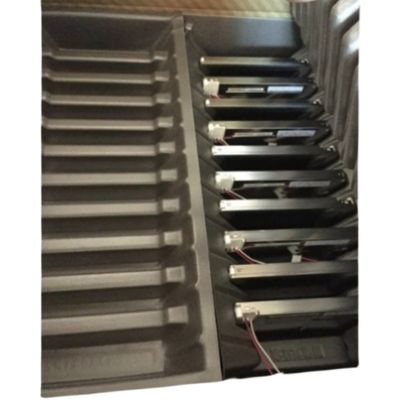

| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 30 pcs / box | 12 Kgs | 600×353×210 mm (L×W×H) |
