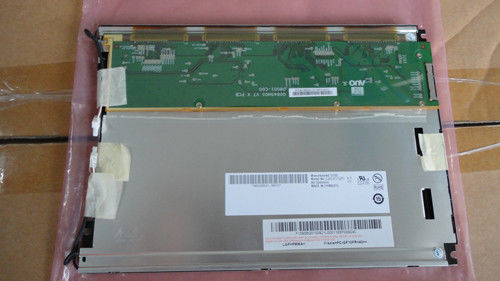

G084SN03 V0 AUO 8.4INCH 800×600RGB 220CD/M2 CCFL LVDS Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY

G084SN03 V0 AUO 8.4INCH 800×600RGB 220CD/M2 CCFL LVDS Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY
G084SN03 V0 AUO 8.4INCH 800×600RGB 220CD/M2 CCFL LVDS Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY G084SN03 V0 AUO 8.4INCH 800×600RGB 220CD/M2 CCFL LVDS Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY G084SN03 V0 AUO 8.4INCH 800×600RGB 220CD/M2 CCFL LVDS Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY

Large Image :  G084SN03 V0 AUO 8.4INCH 800×600RGB 220CD/M2 CCFL LVDS Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: G084SN03 V0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD70
Packaging Details: 30 pcs / box 12 Kgs 600×353×210 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 200PCS
Contact Now

G084SN03 V0 AUO 8.4INCH 800×600RGB 220CD/M2 CCFL LVDS Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: G084SN03 V0 BRAND: AUO
SIZE: 8.4INCH RESOLUTION: 800×600 RGB
BRIGHTNESS: 220CD/M2 TEMPERATURE RANGE: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
High Light:

LVDS Industrial LCD Screen

,

Transmissive AUO TFT LCD

AUO G084SN03 V0 Application Details

Basic Info :
Panel Brand
G084SN03 V0 AUO 8.4INCH 800×600RGB 220CD/M2 CCFL LVDS Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY 0
Panel Model
G084SN03 V0
Diagonal Size
8.4"
Application
  • G084SN03 V0 AUO 8.4INCH 800×600RGB 220CD/M2 CCFL LVDS Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY 1
Panel Type
a-Si TFT-LCD , LCM
Model Alias
G084SN03 V.0
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C
RoHS State
G084SN03 V0 AUO 8.4INCH 800×600RGB 220CD/M2 CCFL LVDS Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY 2
Vibration Rating
1.0G (9.8 m/s²)



AUO G084SN03 V0 Mechanical Details

Pixel Features :
Pixel Format
800(RGB)×600, SVGA
Dot Pitch
0.071×0.213 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.213×0.213 mm (H×V) [119PPI]
Mechanical Size :
Display Area
170.4×127.8 mm (H×V)
Bezel Area
173.8×131.2 mm (H×V)
Outline Dim.
203×142.5 mm (H×V)
Outline Depth
6.0 (Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Face mounting holes (2-Φ3.0, 2-R1.5)
Other Features :
Weight
215±10g
Surface
-



AUO G084SN03 V0 Optical Details

Basic Information :
Brightness
220 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
65/65/65/45 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
12 o'clock
Response Time
10/25 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.310; Wy:0.330
Color Numbers
262K (6-bit)
Color Temperature
6638K
Uniformity
1.60 (Max.)(9 points) G084SN03 V0 AUO 8.4INCH 800×600RGB 220CD/M2 CCFL LVDS Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY 3
1931 Color Gamlt :
NTSC Ratio
48%
sRGB
66% coverage
Adobe RGB
50% coverage
DCI-P3
49% coverage
Rec.2020
36% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO G084SN03 V0 Electronics Details

Frame Frequency :
60Hz Reverse Scan :
No
Power Consumption :
3.3W (Typ.)



AUO G084SN03 V0 Backlight Details

Back-light Features :
Lamp Type
CCFL
Amount
1 pcs
Life Time
20K(Typ.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type (Bottom side)
Lamp Electrical :
Voltage Input
490±49V
Current Input
3.0/4.6mA (Min./Typ.)
Frequency
50/60/80KHz (Min./Typ./Max.)
Kick-off Voltage
820/1070V (Max.)(Ta=+25/0℃)
Consumption
2.3W (Typ.) G084SN03 V0 AUO 8.4INCH 800×600RGB 220CD/M2 CCFL LVDS Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY 5
Interface Features :
Type
Connector
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration G084SN03 V0 AUO 8.4INCH 800×600RGB 220CD/M2 CCFL LVDS Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY 6
JST
BHSR-02VS-1
3.5 mm
2 pins
1 pcs
BLL-2PINS-HL



AUO G084SN03 V0 Interface Detail

Signal Systerm :
LVDS (1 ch, 6-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
230mA (Typ.)
Consumption
0.76W (Typ.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration G084SN03 V0 AUO 8.4INCH 800×600RGB 220CD/M2 CCFL LVDS Operating Temp.: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY 7
HRS
DF19K-20P-1H
1.0 mm
20 pins
1 pcs
LVDS-20P1C6B-070A

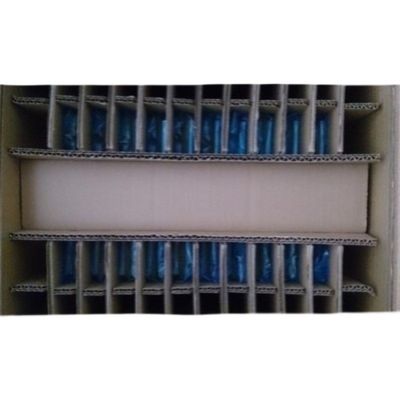

AUO G084SN03 V0 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
30 pcs / box 12 Kgs 600×353×210 mm
