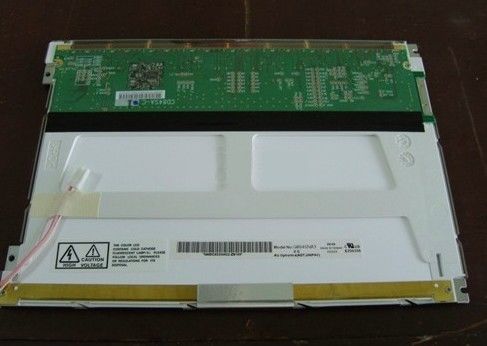

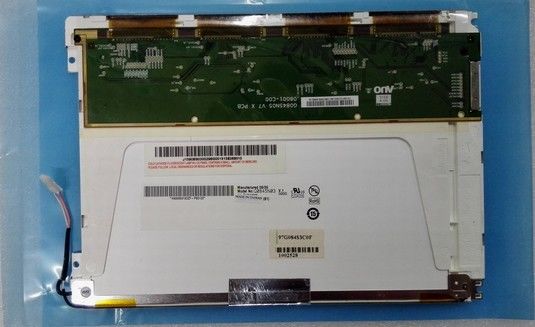

Product Details:
|
| MODEL NUMBER: | G084SN02 V0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 8.4INCH | RESOLUTION: | 800×600 RGB |
| BRIGHTNESS: | 200CD/M2 | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| High Light: | LVDS Industrial LCD Screen,Transmissive AUO TFT LCD |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
 |
G084SN02 V0 | a-Si TFT-LCD , LCM | G084SN02 V.0 | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
|
0 ~ 50 °C | -20 ~ 60 °C | - |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 200 (Typ.) | 65/65/65/45 (Typ.)(CR≥10) | 10/25 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 12 o'clock | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6638K | 262K (6-bit) | X:0.310; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 48% | 66% | 50% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 49% | 36% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.60 (Max.)(9 points) |
||
| Panel Size : | 8.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×600 [SVGA] | RGB Vertical Stripe | 0.213×0.213 [119PPI] | 0.071×0.213 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 170.4(H) × 127.8(V) | 173.8(H) × 131.2(V) | 198.2(H) × 143.6(V) | 7.6 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Face mounting holes (4-Φ3.0) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 210±10g | - | - | ||
| Reverse Scan : | No | |
|---|---|---|
| Vertical Frequency : | 60Hz Power Consumption :
| 3.3W (Typ.) |
| Lamp Features: | Type | Position | Quantity |
Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Bottom side) | 1 pcs | - | 20K(Typ.) | - | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power |
|||
| 490±49V | 3.0/4.6/6.0mA (Min./Typ./Max.) | 2.3W (Typ.) | ||||
| Operating Frequency | Kick-off Voltage | |||||
| 50/60/80KHz (Min./Typ./Max.) | 820/1070V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLL-2PINS-HL | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 230mA (Typ.) | 0.76W (Typ.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | DF19K-20P-1H | 1.0 mm | 20 pins | 1 pcs | LVDS-20P1C6B-070A | |
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 30 pcs / box | - | 600×353×210 mm (L×W×H) |
