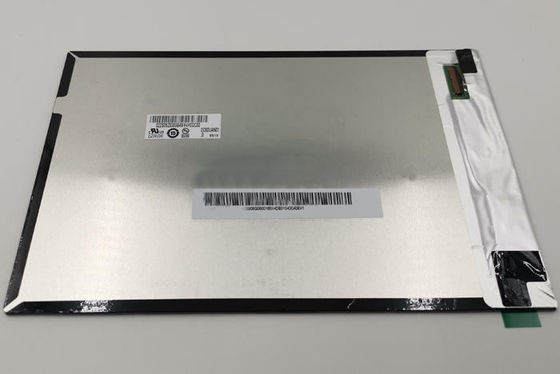

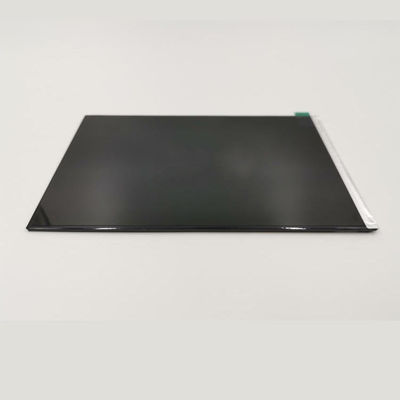

Product Details:
|
| MODEL NUMBER: | G080UAN02.1 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 8INCH | RESOLUTION: | 1200×1920RGB |
| BRIGHTNESS: | 390CD/M2 | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Lamp Type: | WLED | ||
| High Light: | LVDS Industrial LCD Screen,Transmissive AUO TFT LCD |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
 |
G080UAN02.1 | a-Si TFT-LCD , LCM | - | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
|
0 ~ 50 °C | -20 ~ 60 °C | - |
| Panel Size : | 8.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1200(RGB)×1920, WUXGA | RGB Vertical Stripe | 0.0299×0.0897 mm | 0.0897×0.0897 mm [283PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 107.64×172.224 mm | - | 114.6×184.125 mm | 2.3/3.95 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 10:16 (W : H) | Portrait type | ||
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | - | Glare (Haze 0%) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 390 cd/m² (Typ.) | AHVA, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 25 (Typ.)(Tr+Tf) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7351K | 16.7M (8-bit) | X:0.300; Y:0.320 |
| Frame Rate : | 60Hz Reverse Scan :
| No |
|---|
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 150mA (Max.) | 3.3V (Typ.) | 0.5W (Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | MIPI (4 data lanes) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| I-PEX | 20718-051E-01 | 1 pcs | 0.3 mm | 51 pins | ||
| Backlight Features: | Type | Position | Shape | Amount |
Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 4 strings | 8S4P | 15K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption |
|||
| 20mA (Typ.) | 23.04/24.8V (Typ./Max.) | 1.38/1.49W (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 66 pcs / box | 10.2 Kgs | 520×340×250 mm (L×W×H) |
