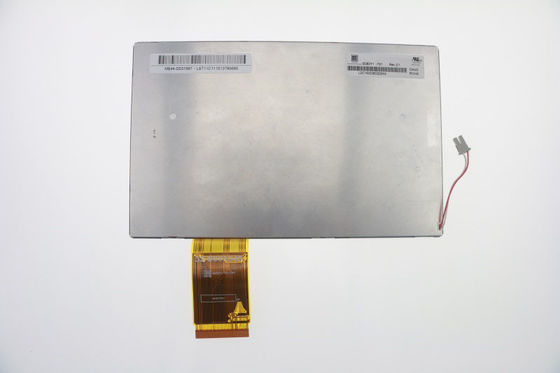

Product Details:
|
| MODEL NUMBER: | G080UAN01.2 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 8INCH | RESOLUTION: | 1200×1920RGB |
| BRIGHTNESS: | 800CD/M2 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | LVDS Industrial LCD Screen,Transmissive AUO TFT LCD |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
 |
G080UAN01.2 | a-Si TFT-LCD , LCM | - | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
|
0 ~ 50 °C | -20 ~ 60 °C | - |
| Screen Size : | 8.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1200(RGB)×1920, WUXGA | RGB Vertical Stripe | 0.0299×0.0897 mm | 0.0897×0.0897 mm [283PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 107.64×172.224 mm | - | - | - | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 10:16 | Portrait type | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 800 cd/m² (Typ.) | AHVA, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) |
27 (Typ.)(Tr+Tf) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| - | 16.7M (8-bit) | - | |
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | - |
| Refresh Rate : | 60Hz Reverse Scan :
| No |
|---|
| Back-light Features: | Type | Position | Life(Hours) | Amount |
Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 15K(Min.) | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | ||||||
G080UAN01.2 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 27 (Typ.)(Tr+Tf) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. G080UAN01.2 utilizes MIPI as it's signal inputting systerm with power supply voltage of 3.3V (Typ.).
