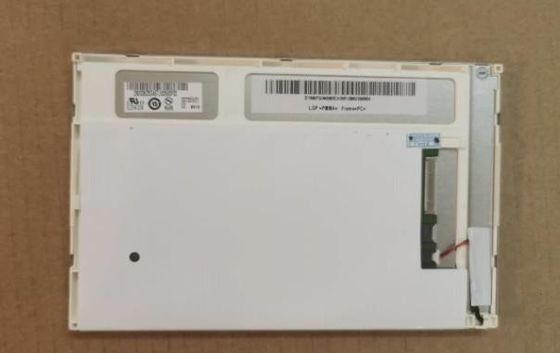

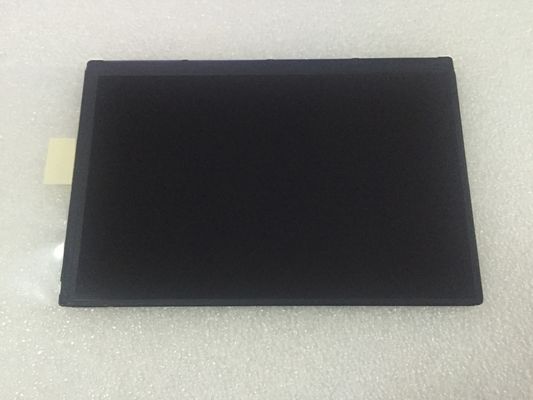

G070VAN01.1 AUO 7INCH 800×480RGB 200CD/M2 WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

G070VAN01.1 AUO 7INCH 800×480RGB 200CD/M2 WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY
G070VAN01.1 AUO 7INCH 800×480RGB 200CD/M2 WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY G070VAN01.1 AUO 7INCH 800×480RGB 200CD/M2 WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Large Image :  G070VAN01.1 AUO 7INCH 800×480RGB 200CD/M2 WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: G070VAN01.1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD70
Packaging Details: 40 pcs / box 9.7 Kgs 520×340×250 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 100PCS
Contact Now

G070VAN01.1 AUO 7INCH 800×480RGB 200CD/M2 WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: G070VAN01.1 BRAND: AUO
SIZE: 7INCH RESOLUTION: 800×480 RGB
BRIGHTNESS: 200CD/M2 TEMPERATURE RANGE: Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
High Light:

LVDS Industrial LCD Screen

,

Transmissive AUO TFT LCD

AUO G070VAN01.1 Application Details

Basic Detail :
Manufacturer
G070VAN01.1 AUO 7INCH 800×480RGB 200CD/M2 WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 0
Model Name
G070VAN01.1
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
7.0 inch
Designed For
  • G070VAN01.1 AUO 7INCH 800×480RGB 200CD/M2 WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 1
Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS
G070VAN01.1 AUO 7INCH 800×480RGB 200CD/M2 WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 2
Vibration Level
-



AUO G070VAN01.1 Optical Details

Basic Detail :
Luminance
200 cd/m² (Typ.)
Contrast Ratio
1300:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
11/19 (Max.)(Tr/Td) ms
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Operating Mode
AHVA, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature
6485K
White Variation
1.43 (Typ.)(9 points) G070VAN01.1 AUO 7INCH 800×480RGB 200CD/M2 WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 3
1931 Color Gamlt :
NTSC Ratio
74%
sRGB
99% coverage
Adobe RGB
76% coverage
DCI-P3
77% coverage
Rec.2020
55% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO G070VAN01.1 Mechanical Details

Pixel Features :
Number of Pixel
800×480(RGB), WVGA
Arrangement
RGB Horizontal Stripe
Dot Pitch(W×H)
0.1905×0.0635 mm
Pixel Pitch(W×H)
0.1905×0.1905 mm [133PPI]
Physical Size :
Active Viewing
152.4(W)×91.44(H) mm
Overall Dim.
166.6(W)×107(H) mm
Bezel Opening
154.2(W)×93.24(H) mm
Overall Depth
7.0/10.0 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
15:9
Shape Style

Other Detail :
Mass
160g (Typ.)
Surface
Antiglare



AUO G070VAN01.1 Electronics Details

Refresh Rate :
60Hz Reverse Scan :
No
Total Consumption :
1.4W (Max.)



AUO G070VAN01.1 Interface Detail

Signal Electrical :
Input Current
0.14/0.20A (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
-
Signal Interface
LVDS (1 ch, 6/8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment G070VAN01.1 AUO 7INCH 800×480RGB 200CD/M2 WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 5
STARCONN
093G30-00001A-M4
1.0 mm
30 pins
1 pcs



AUO G070VAN01.1 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
7S2P
Position
Edge light type
Exchange
-
Lamp Shape
Array
Lamp Life
30K(Min.) (Hours)
Lamp Electrical :
Input Voltage
21.0/23.1V (Typ./Max.)
Input Current
32mA (Typ.)
Consumption
672mW (Typ.) G070VAN01.1 AUO 7INCH 800×480RGB 200CD/M2 WLED LVDS Storage Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 6
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No



AUO G070VAN01.1 Packing Details

Package Box : Amount Size (L×W×H) Weight
40 pcs / box 9.7 Kgs 520×340×250 mm

Tag:

WLED AUO TFT LCD,

Transmissive AUO TFT LCD,

TN AUO TFT LCD
