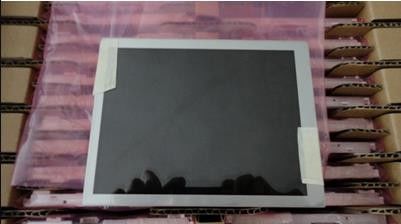

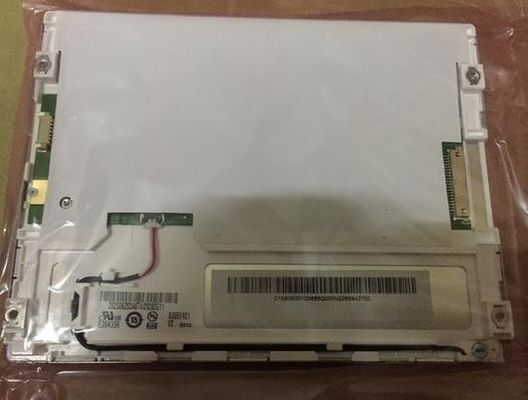

Product Details:
|
| MODEL NUMBER: | G065VN01 V0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 6.5INCH | RESOLUTION: | 640×480 RGB |
| BRIGHTNESS: | 500CD/M2 | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| High Light: | LVDS Industrial LCD Screen,Transmissive AUO TFT LCD |
||
| Basic Information : | Brand |  |
Model | G065VN01 V0 |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 6.5" | Alias | G065VN01 V.0 | |
| Environment : | Storage Temp. | -20 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | |
Vibration | 1.5G (14.7 m/s²) |
| Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch(mm) | 0.069×0.207 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.207×0.207 (H×V) [122PPI] | |
| Mechanical Size : | Active Area(mm) | 132.48(H) × 99.36(V) | Bezel Area(mm) | 135.9(H) × 102.8(V) |
| Outline Dim.(mm) | 153(H) × 118(V) | Depth(mm) | 10.7±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Spec : | Weight | 200g (Typ.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 15/10 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.67 (Max.)(5/13 points) |
|
| 1931 Color Gamlt : | NTSC Ratio | 58% | sRGB | 79% coverage |
| Adobe RGB | 61% coverage | DCI-P3 | 60% coverage | |
| Rec.2020 | 43% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz Reverse Scan :
| Yes (180°) |
|---|---|---|
| Power Consumption : | 3.65/4.41W (Typ./Max.) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 185/265mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.61/0.87W (Typ./Max.) | |||||
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | DF9B-31P-1V | 1 pcs | 31 pins | 1.0 mm | ||
| Backlight Features: | Shape | - | Type | CCFL | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable | Quantity | 2 pcs | Life Time | 50K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 380±38V | Current Supply | 2.0/5.0/6.5mA (Min./Typ./Max.) | ||
| Frequency | 40/50/60KHz (Min./Typ./Max.) | Startup Voltage | 650/1430V (Max.)(Ta=+25/-20℃) | |||
| Consumption | 3.80W (Typ.) |
|||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHR-04VS-1 | 1 pcs | 4 pins | 4.0 mm | BLL-4PINS-HHNL | |
| Backlight Driver : | No | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 80 pcs / box | 19 Kgs | 425×386×430 mm (L×W×H) |
