C123HAN02.5 AUO 12.3INCH 1920×720RGB 600CD/M2 WLED LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

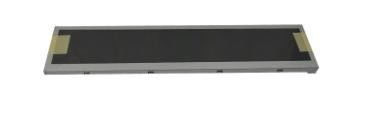

Large Image : C123HAN02.5 AUO 12.3INCH 1920×720RGB 600CD/M2 WLED LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	CHINA
Brand Name:	AUO
Certification:	ISO9001
Model Number:	C123HAN02.5

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD75
Packaging Details:	21 pcs / box 15±0.5Kgs 550×410×260 mm (L×W×H)
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability:	200PCS

Contact Now

C123HAN02.5 AUO 12.3INCH 1920×720RGB 600CD/M2 WLED LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	C123HAN02.5	BRAND:	AUO
SIZE:	12.3INCH	RESOLUTION:	1920×720RGB
BRIGHTNESS:	600CD/M2	TEMPERATURE RANGE:	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C
High Light:	LVDS Industrial LCD Screen , Transmissive AUO TFT LCD

AUO C123HAN02.5 Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias
Basic Information :		C123HAN02.5	a-Si TFT-LCD , LCM	-
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		-30 ~ 85 °C	-40 ~ 95 °C	2.9G (28.4 m/s²)

AUO C123HAN02.5 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	600 (Min.)	80/80/80/80 (Typ.)(CR≥10)	15/45 (Typ.)(Tr/Td)
	Best View on	Display Mode	Contrast Ratio
	Symmetry	AHVA, Normally Black, Transmissive	1000 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	6673K	16.7M (8-bit)	X:0.305; Y:0.355
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	75%	97%	77%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	78%	56%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.25 (Max.)(9 points)

AUO C123HAN02.5 Mechanical Features

Panel Size :	12.3"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	1920(RGB)×720	RGB Vertical Stripe	0.1521×0.1521 [167PPI]	0.0507×0.1521
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	292.032(H) × 109.512(V)	293.94(H) × 111.42(V)	310.75(H) × 129.86(V)	12.08/16.23 (Typ./Max.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	8:3 (H:V)

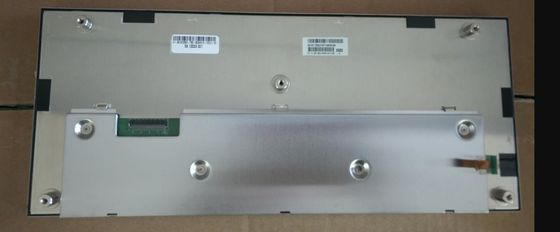

Mounting :	Rear mounting Pole (5 pcs)
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	570±57g	-	Antiglare

AUO C123HAN02.5 Electronics Features

Reverse Scan :

Vertical Frequency :

60Hz

AUO C123HAN02.5 Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type	8S4P	4 strings	10K(Min.)	-
WLED Electrical :	Voltage Supply		Current Supply			Power
WLED Electrical :	24/27.2V (Typ./Max.)		80mA (Typ.)
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	No				FPC
Interface Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Interface Detail :			0.5 mm	10 pins	1 pcs

AUO C123HAN02.5 Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	3.3V (Typ.)		655.9/1219.2mA (Typ./Max.)			-
Interface Features :	Position	Signal				Type
Interface Features :	-	LVDS (2 ch, 8-bit)				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Connector Detail :	HRS	FH41-40S-0.5SH(05)	0.5 mm	40 pins	1 pcs

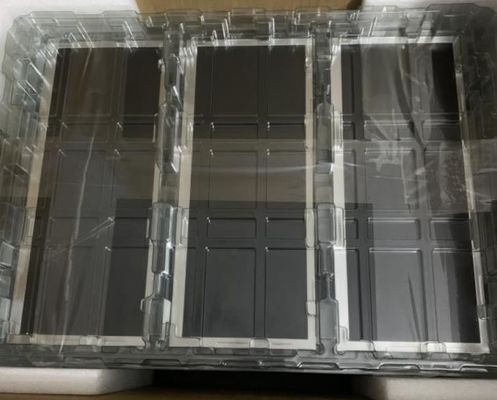

AUO C123HAN02.5 Packing Features

Package Box :	Quantity	Weight	Box Size
Package Box :	21 pcs / box	15±0.5Kgs	550×410×260 mm (L×W×H)
