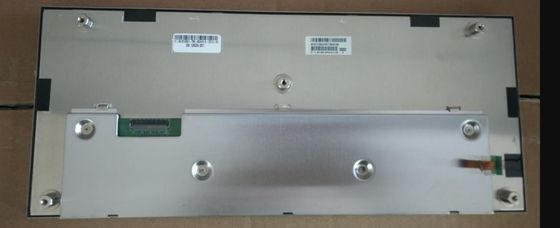

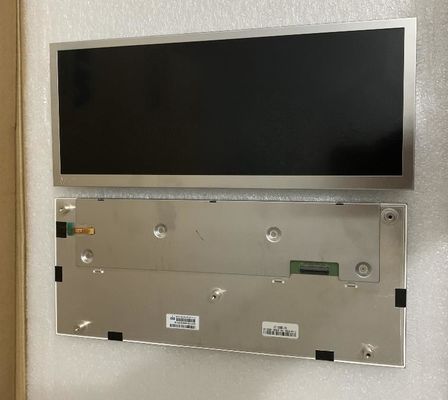

C123HAN02.1 AUO 12.3INCH 1920×720RGB 700CD/M2 WLED LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

C123HAN02.1 AUO 12.3INCH 1920×720RGB 700CD/M2 WLED LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
C123HAN02.1 AUO 12.3INCH 1920×720RGB 700CD/M2 WLED LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY C123HAN02.1 AUO 12.3INCH 1920×720RGB 700CD/M2 WLED LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY C123HAN02.1 AUO 12.3INCH 1920×720RGB 700CD/M2 WLED LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Large Image :  C123HAN02.1 AUO 12.3INCH 1920×720RGB 700CD/M2 WLED LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: C123HAN02.1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS

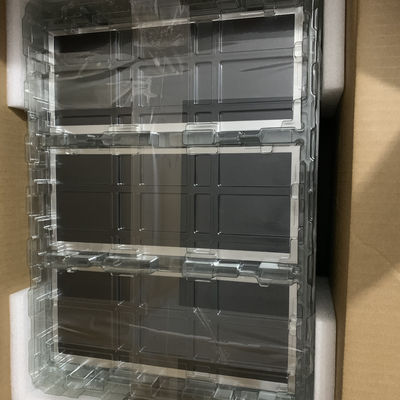

Packaging Details: 21 pcs / box 15 Kgs 650×410×260 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 350PCS
Contact Now

C123HAN02.1 AUO 12.3INCH 1920×720RGB 700CD/M2 WLED LVDS Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: C123HAN02.1 BRAND: AUO
SIZE: 12.3INCH RESOLUTION: 1920×720RGB
BRIGHTNESS: 500CD/M2 TEMPERATURE RANGE: Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C
Highlight:

LVDS Industrial LCD Screen

,

Transmissive AUO TFT LCD

AUO C123HAN02.1 Application Details

Basic Info :
Panel Brand

Panel Model
C123HAN02.1
Diagonal Size
12.3"
Application
Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-30 ~ 85 °C
Storage Temp.
-40 ~ 95 °C
RoHS State

Vibration Rating
2.9G (28.4 m/s²)



AUO C123HAN02.1 Mechanical Details

Pixel Features :
Pixel Format
1920(RGB)×720
Dot Pitch
0.0507×0.1521 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.1521×0.1521 mm (H×V) [167PPI]
Mechanical Size :
Display Area
292.032×109.512 mm (H×V)
Bezel Area
293.94×111.42 mm (H×V)
Outline Dim.
310.75×129.86 mm (H×V)
Outline Depth
12.08/16.23 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
8:3 (H:V)
Shape Style

Holes & Brackets :
Rear mounting Pole (5 pcs)
Other Features :
Weight
TBD
Surface
Antiglare



AUO C123HAN02.1 Optical Details

Basic Information :
Brightness
700 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Optical Mode
AHVA, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
15/20 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.311; Wy:0.317
Color Numbers
16.7M (8-bit)
Color Temperature
6710K
Uniformity
1.25 (Max.)(9 points)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-



AUO C123HAN02.1 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
No



AUO C123HAN02.1 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
8S4P
Life Time
10K(Min.) (Hours)
Replacement
-
Lamp Shape
4 strings
Position
Edge light type
Lamp Electrical :
Voltage Input
24/27.2V (Typ./Max.)
Current Input
80mA (Typ.)
Interface Features :
Type
FPC
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration


0.5 mm
10 pins
1 pcs



AUO C123HAN02.1 Interface Detail

Signal Systerm :
LVDS (2 ch, 8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
TBD
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
HRS
FH41-40S-0.5SH(05)
0.5 mm
40 pins
1 pcs


FAQ:



Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
