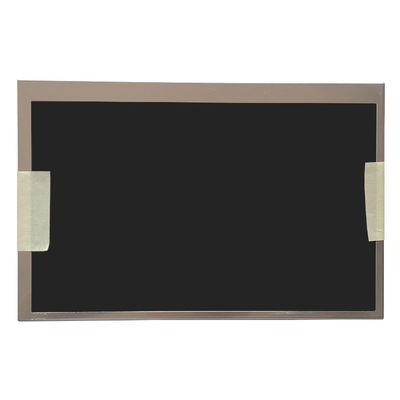

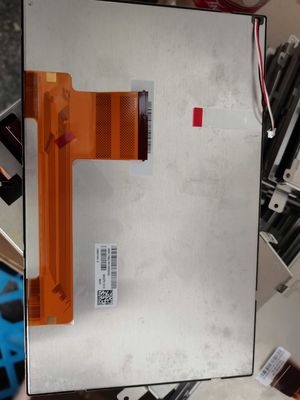

Product Details:
|

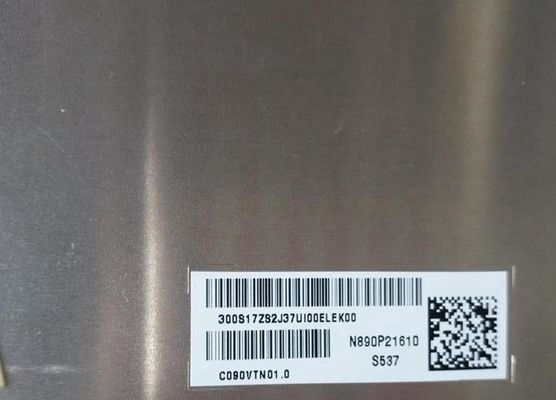

| MODEL NUMBER: | C090VTN01.0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 9INCH | RESOLUTION: | 800×480 RGB |
| BRIGHTNESS: | 500CD/M2 | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -55 ~ 125 °C |
| Highlight: | LVDS Industrial LCD Screen,Transmissive AUO TFT LCD |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| C090VTN01.0 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -30 ~ 85 °C | -55 ~ 125 °C | 2.9G (28.4 m/s²) |
| Panel Size : | 9.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.082×0.246 mm | 0.246×0.246 mm [103PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 196.8×118.08 mm | 199.5×121.58 mm | 209.7×130.7 mm | 6.7±0.2 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 15:9 (W : H) | Landscape type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 234.5±23.4g | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | TN, Normally White, Transmissive | 700:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 70/70/50/60 (Typ.)(CR≥10) | 6 o'clock | 13/20 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7274K | 16.7M (8-bit) | X:0.300; Y:0.325 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 73% | 95% | 72% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.43 (Typ./Max.)(9 points) | ||
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Time Controller (T-CON) : | Need external T-CON |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| - | 3.3/12.5/18.0/-10.0V (Typ.)(VDDD/VDDA/VGH/VGL) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VDDD; 0.7VDDD≤VIH≤VDDD | |||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | Parallel RGB (1 ch, 8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 60 pins | ||||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 2 strings | 7S2P | 10K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 80/85mA (Typ./Max.) | 21.7/23.8V (Min./Max.) | 3.36W (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 1.5 mm | 3 pins | BLE-3PINS-ACC | |||
