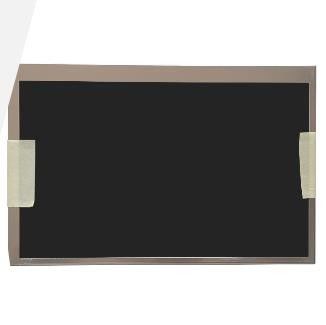

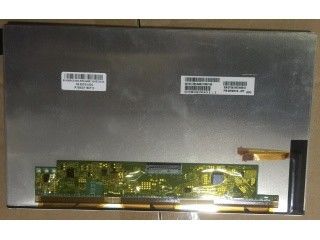

Product Details:
|
| MODEL NUMBER: | C090VAN01.1 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 9INCH | RESOLUTION: | 800×480 RGB |
| BRIGHTNESS: | 950CD/M2 | TEMPERATURE RANGE: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
| Signal Interface: | LVDS | ||
| Highlight: | LVDS Industrial LCD Screen,Transmissive AUO TFT LCD |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| C090VAN01.1 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -30 ~ 85 °C | -40 ~ 95 °C | 2.9G (28.4 m/s²) | ||
| Application : |
|
|||
| Typical Features : |
|
|||
| Screen Size : | 9.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0817×0.2451 mm | 0.2451×0.2451 mm [103PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 196.08×117.648 mm | 198.48×120.05 mm | 209.3×131.8 mm | 7.2/9.27 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 15:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 290/320g (Typ./Max.) | - | Antiglare | ||
| Holes & Brackets : | Without | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 950 cd/m² (Typ.) | TN, Normally White, Transmissive | 900:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 75/75/70/70 (Typ.)(CR≥10) | 35 (Max.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| - | 16.7M (8-bit) | - | |
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | - |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | 10S3P | 3 strings | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | FPC | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 8 pins | 1.0 mm | ||||
