C090EAN02.0 AUO 9INCH 1280×720RGB 650CD/M2 WLED LVDS Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY

C090EAN02.0 AUO 9INCH 1280×720RGB 650CD/M2 WLED LVDS Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY
C090EAN02.0 AUO 9INCH 1280×720RGB 650CD/M2 WLED LVDS Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY C090EAN02.0 AUO 9INCH 1280×720RGB 650CD/M2 WLED LVDS Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY C090EAN02.0 AUO 9INCH 1280×720RGB 650CD/M2 WLED LVDS Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY C090EAN02.0 AUO 9INCH 1280×720RGB 650CD/M2 WLED LVDS Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY

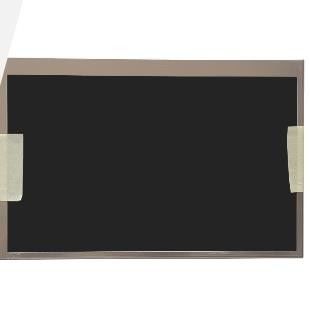

Large Image :  C090EAN02.0 AUO 9INCH 1280×720RGB 650CD/M2 WLED LVDS Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: C090EAN02.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS

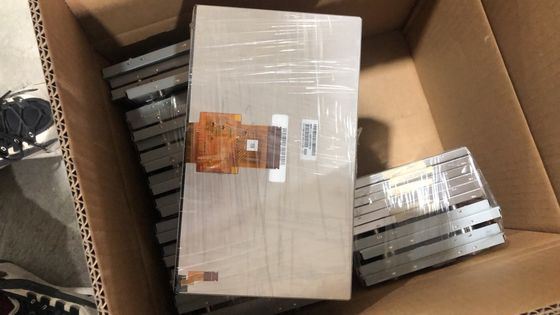

Packaging Details: 30 pcs / box 15 Kgs 520×340×250 mm (L×W×H)
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 200PCS
Contact Now

C090EAN02.0 AUO 9INCH 1280×720RGB 650CD/M2 WLED LVDS Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: C090EAN02.0 BRAND: AUO
SIZE: 9INCH RESOLUTION: 1280×720RGB
BRIGHTNESS: 650CD/M2 TEMPERATURE RANGE: Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C
Highlight:

LVDS Industrial LCD Screen

,

Transmissive AUO TFT LCD

AUO C090EAN02.0 Application Details

Basic Detail :
Manufacturer

Model Name
C090EAN02.0
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
9.0 inch
Designed For

Maximum Ratings :
OP Temperature
-30 ~ 85 °C
ST Temperature
-40 ~ 95 °C
RoHS

Vibration Level
2.9G (28.4 m/s²)
Features :
  •



AUO C090EAN02.0 Optical Details

Basic Detail :
Luminance
650 cd/m² (Min.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
20/20 (Max.)(Tr/Td) ms
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Operating Mode
AHVA, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.296; Wy:0.313
Support Color
16.7M (8-bit)
Color Temperature
7749K
White Variation
1.25 (Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
72%
sRGB
100% coverage
Adobe RGB
75% coverage
DCI-P3
75% coverage
Rec.2020
53% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO C090EAN02.0 Mechanical Details

Pixel Features :
Number of Pixel
1280(RGB)×720, WXGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.05175×0.15525 mm
Pixel Pitch(W×H)
0.15525×0.15525 mm [163PPI]
Physical Size :
Active Viewing
198.72(W)×111.78(H) mm
Overall Dim.
210(W)×126.8(H) mm
Bezel Opening
202.02(W)×115.78(H) mm
Overall Depth
7.7/9.7 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style

Other Detail :
Mass
TBD
Surface
Antiglare



AUO C090EAN02.0 Interface Detail

Signal Electrical :
Input Current
-
Input Voltage
3.3/13.5/18/-8V (Typ.)(VDD/AVDD/VGH/VGL)
Consumption
-
Signal Interface
LVDS (1 ch, 8-bit)
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment



60 pins
1 pcs



FAQ:



Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

 C090EAN02.0 AUO 9INCH 1280×720RGB 650CD/M2 WLED LVDS Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY 0

Tag:

WLED AUO TFT LCD,

Transmissive AUO TFT LCD,

TN AUO TFT LCD
