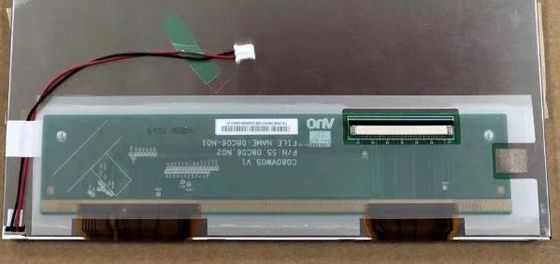

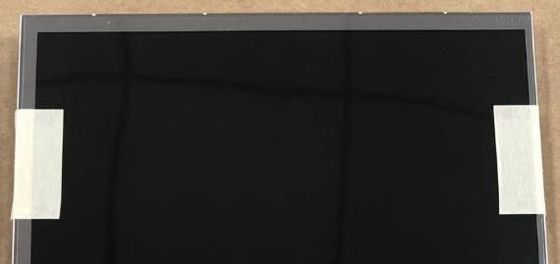

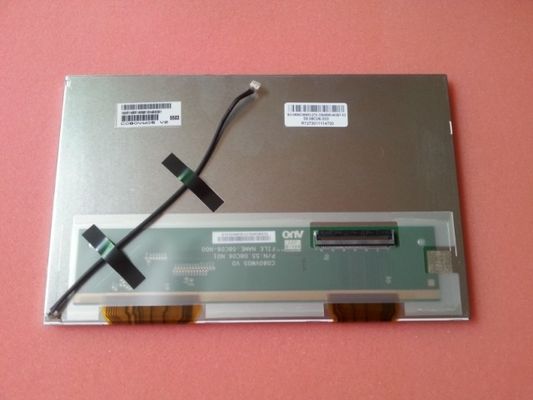

C080VW05 V1 AUO 8INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

C080VW05 V1 AUO 8INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY
C080VW05 V1 AUO 8INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY C080VW05 V1 AUO 8INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY C080VW05 V1 AUO 8INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Large Image :  C080VW05 V1 AUO 8INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: C080VW05 V1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 30 pcs / box 9.2 Kgs 520×340×250 mm (L×W×H)
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 5000PCS
Contact Now

C080VW05 V1 AUO 8INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: C080VW05 V1 BRAND: AUO
SIZE: 8INCH RESOLUTION: 800×480 RGB
BRIGHTNESS: 450CD/M2 TEMPERATURE RANGE: Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 90 °C
Signal Interface: TTL
Highlight:

LVDS Industrial LCD Screen

,

Transmissive AUO TFT LCD

AUO C080VW05 V1 Application Details

Basic Information :
Brand

Model
C080VW05 V1
Type
a-Si TFT-LCD , LCM
Used For



Screen Size
8.0 inch
Alias
C080VW05 V.1
Environment :
Storage Temp.
-40 ~ 90 °C
Operating Temp.
-30 ~ 80 °C
RoHS

Vibration
-
Typical Features :
  •



AUO C080VW05 V1 Mechanical Details

Pixel Features :
Resolution
800(RGB)×480, WVGA
Dot Pitch(mm)
0.073×0.219 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.219×0.219 (H×V) [115PPI]
Mechanical Size :
Active Area(mm)
175.2(H) × 105.12(V)
Bezel Area(mm)
177.0(H) × 106.92(V)
Outline Dim.(mm)
186.5(H) × 117.22(V)
Depth(mm)
5.3 (Typ.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
15:9 (H:V)
Orientation
Landscape type
Other Spec :
Weight
180±18g
Treatment
Antiglare



AUO C080VW05 V1 Optical Details

Basic Information :
Luminance(cd/m²)
450 (Typ.)
Contrast Ratio
300:1 (Typ.) (Transmissive)
Viewing Angle
60/60/40/60 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
15/20 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.310; Wy:0.330
Display Colors
262K (6-bit)
Color Temperature
6638K
White Uniformity
-



AUO C080VW05 V1 Interface Detail

Signal Electrical :
Voltage Supply
3.3/10.0/15.0/4.0/-7V (Typ.)(VCC/AVDD/VGH/VCOM/VGL)
Current Supply
3.0/20.0/0.15/0.15mA (Typ.)(ICC/AIDD/IGH/IGL)
Signal Type :
Parallel RGB (1 ch, 6-bit)
Logic Voltage
0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
STARCONN
6700L60-000000-M1

60 pins
1 pcs



FAQ:



Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



C080VW05 V1 AUO 8INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 80 °C INDUSTRIAL LCD DISPLAY 0
