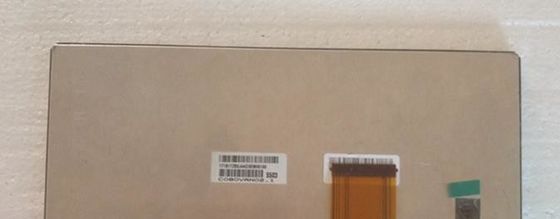

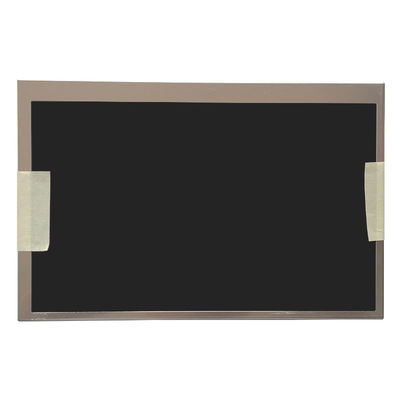

Product Details:
|
| MODEL NUMBER: | C080VVN02.1 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 8INCH | RESOLUTION: | 800×480 RGB |
| BRIGHTNESS: | 650CD/M2 | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 95 °C |
| High Light: | LVDS Industrial LCD Screen,Transmissive AUO TFT LCD |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
 |
C080VVN02.1 | a-Si TFT-LCD , LCM | - | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
|
-30 ~ 80 °C | -40 ~ 95 °C | 2.9G (28.4 m/s²) |
| Screen Size : | 8.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0725×0.2175 mm | 0.2175×0.2175 mm [116PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 174×104.4 mm | 177.8×108.4 mm | 188.5×123 mm | 7.05 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 15:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| TBD | - | Antiglare, Hard coating (3H) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 650 cd/m² (Typ.) | AMVA, Normally Black, Transmissive | 1000:1 (Min.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 80/80/80/80 (Typ.)(CR≥10) |
35 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6852K | 16.7M (6-bit + Hi-FRC) | X:0.310; Y:0.310 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 50% | 70% | 52% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 52% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25 (Max.)(9 points) |
||
| Refresh Rate : | 60Hz Reverse Scan :
| Yes (U/D, L/R) |
|---|---|---|
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Type | Position | Life(Hours) | Amount |
Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 10K(Min.) | 7S2P | 2 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption |
|||
| 21.0/23.8V (Typ./Max.) | 80/85mA (Typ./Max.) | |||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | GHR-04V-S | 1 pcs | 4 pins | 1.25 mm | ||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3/13.0/15.0/-10.0V (Typ.)(VDDIO/AVDD/VGH/VGL) | 10.0/18.0/0.16/0.16mA (Typ.)(IDDIO/AIDD/IGH/IGL) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VDDIO; 0.7VDDIO≤VIH≤VDDIO | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 8-bit) | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 64 pins | 0.5 mm | ||||
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 32 pcs / box | 15.0 Kgs | 650×353×210 mm (L×W×H) |
