Product Details:
|

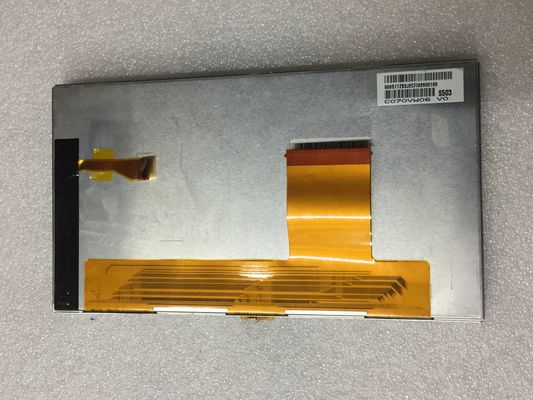

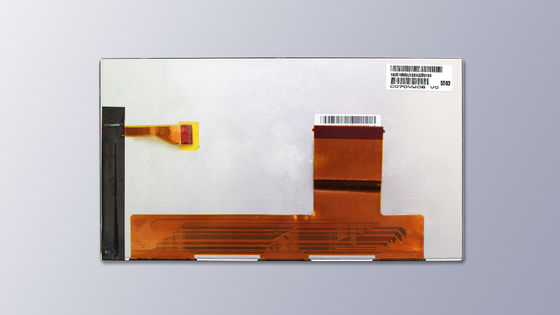

| MODEL NUMBER: | C070VW06 V0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 7INCH | RESOLUTION: | 800×480 RGB |
| BRIGHTNESS: | 500CD/M2 | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
| High Light: | LVDS Industrial LCD Screen,Transmissive AUO TFT LCD |
||
| Basic Information : | Brand | Model | C070VW06 V0 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 7.0" | Alias | C070VW06 V.0 | |
| Environment : | Storage Temp. | -40 ~~ 95 °C | Operating Temp. | -30 ~~ 85 °C |
| RoHS | Vibration | 2.9G (28.4 m/s²) |
| Pixel Features : | Resolution | 800(RGB)×480, WVGA | Dot Pitch(mm) | 0.0655×0.1715 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1965×0.1715 (H×V) [133PPI] | |
| Mechanical Size : | Active Area(mm) | 157.2(H) × 82.32(V) | Bezel Area(mm) | 159.0(H) × 84.12(V) |
| Outline Dim.(mm) | 167(H) × 93(V) | Depth(mm) | 7.0±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 17:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 170g (Max.) | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/50/65 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 15/20 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.321; Y:0.334 | Display Colors | 262K (6-bit) |
| Color Temperature | 6046K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 50% | sRGB | 70% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 52% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 3.86W (Typ.) |
| Time Controller (T-CON) : | Need external T-CON |
| Signal Electrical : | Voltage Supply | 3.3/9.8/19/-9V (Typ.)(VCC/AVDD/VGH/VHL) | Current Supply | 5.2/37/0.23/0.24mA (Max.)(ICC/AIDD/IGH/IGL) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.497W | |||||
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 60 pins | 0.5 mm | ||||
| Backlight Features: | Shape | 3 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 4S3P | Life Time | 10K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 14/16V (Typ./Max.) | Current Supply | 80/85mA (Typ./Max.) | ||
| Consumption | 3.36W (Typ.) | |||||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 8 pins | 1.0 mm | BLE-8PINS-AANCCCNN | |||
| Backlight Driver : | No | |||||
