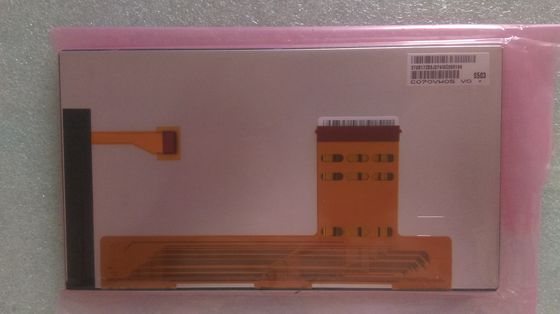

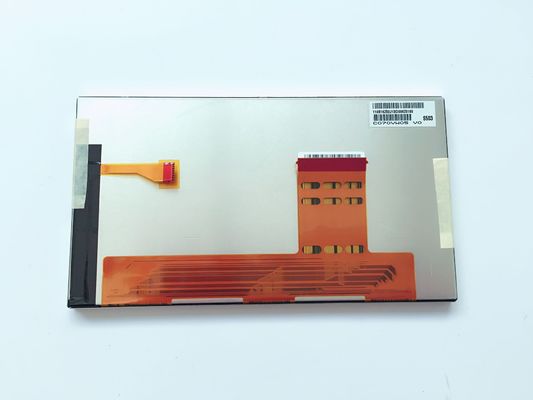

C070VW05 V1 AUO 7INCH 800×480RGB 500CD/M2 WLED TTL Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY

C070VW05 V1 AUO 7INCH 800×480RGB 500CD/M2 WLED TTL Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY
C070VW05 V1 AUO 7INCH 800×480RGB 500CD/M2 WLED TTL Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY C070VW05 V1 AUO 7INCH 800×480RGB 500CD/M2 WLED TTL Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY C070VW05 V1 AUO 7INCH 800×480RGB 500CD/M2 WLED TTL Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY

Large Image :  C070VW05 V1 AUO 7INCH 800×480RGB 500CD/M2 WLED TTL Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: C070VW05 V1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 60 pcs / box 12.0 Kgs 520×340×250 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 100PCS
Contact Now

C070VW05 V1 AUO 7INCH 800×480RGB 500CD/M2 WLED TTL Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: C070VW05 V1 BRAND: AUO
SIZE: 7INCH RESOLUTION: 800×480 RGB
BRIGHTNESS: 500CD/M2 TEMPERATURE RANGE: Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C
Highlight:

LVDS Industrial LCD Screen

,

Transmissive AUO TFT LCD



AUO C070VW05 V1 Application Details

Basic Detail :
Manufacturer

Model Name
C070VW05 V1
Panel Type
a-Si TFT-LCD , LCM
Another Name
C070VW05 V.1
Panel Size
7.0 inch
Designed For
Maximum Ratings :
OP Temperature
-30 ~ 85 °C
ST Temperature
-40 ~ 95 °C
RoHS

Vibration Level
2.9G (28.4 m/s²)



AUO C070VW05 V1 Optical Details

Basic Detail :
Luminance
500 cd/m² (Typ.)
Contrast Ratio
300:1 (Typ.) (Transmissive)
Good View at
12 o'clock
Response Speed
15/20 (Typ.)(Tr/Td) ms
Viewing Angle
65/65/65/50 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.310; Wy:0.330
Support Color
262K (6-bit)
Color Temperature
6638K
White Variation
1.33/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
49%
sRGB
69% coverage
Adobe RGB
51% coverage
DCI-P3
51% coverage
Rec.2020
37% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO C070VW05 V1 Mechanical Details

Pixel Features :
Number of Pixel
800(RGB)×480, WVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0655×0.1715 mm
Pixel Pitch(W×H)
0.1965×0.1715 mm [133PPI]
Physical Size :
Active Viewing
157.2(W)×82.32(H) mm
Overall Dim.
167(W)×93(H) mm
Bezel Opening
159.0(W)×84.12(H) mm
Overall Depth
7.0±0.3 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
17:9
Shape Style

Fixation :
Without
Other Detail :
Mass
170g (Typ.)
Surface
Antiglare



AUO C070VW05 V1 Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
Yes (U/D, L/R)
Total Consumption :
3.96W (Typ.)
Time Controller (T-CON) :
Need external T-CON



AUO C070VW05 V1 Interface Detail

Signal Electrical :
Input Current
2.5/18.0/0.16/0.17mA (Typ.)(ICC/AIDD/IGH/IGL)
Input Voltage
3.3/9.8/19/-8V (Typ.)(VCC/AVDD/VGH/VGL)
Consumption
0.5W
Signal Interface
Parallel RGB (1 ch, 6-bit)
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment


0.5 mm
60 pins
1 pcs






AUO C070VW05 V1 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
3 strings
Position
Edge light type
Exchange
-
Lamp Shape
3 strings
Lamp Life
10K(Min.) (Hours)
Lamp Electrical :
Input Voltage
14.4/16.0V (Typ./Max.)
Input Current
80/85mA (Typ./Max.)
Consumption
3.46W
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment


1.0 mm
8 pins
1 pcs
BLE-8PINS-AANCCCNN
Backlight Driver :
No

FAQ:

Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
