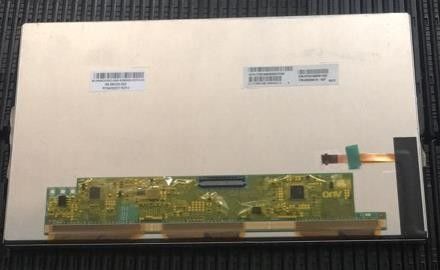

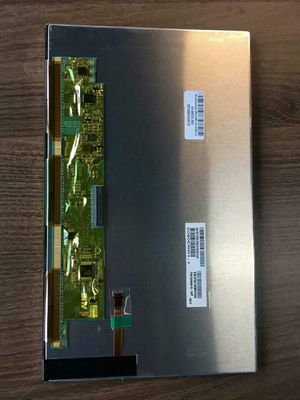

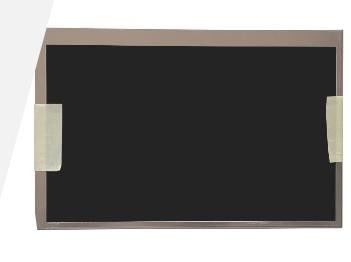

C090EAN01.1 AUO 9INCH 1280×720RGB 680CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

C090EAN01.1 AUO 9INCH 1280×720RGB 680CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
C090EAN01.1 AUO 9INCH 1280×720RGB 680CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY C090EAN01.1 AUO 9INCH 1280×720RGB 680CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY C090EAN01.1 AUO 9INCH 1280×720RGB 680CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Large Image :  C090EAN01.1 AUO 9INCH 1280×720RGB 680CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: C090EAN01.1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 30 pcs / box 15 Kgs 520×340×250 mm (L×W×H)
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 180PCS
Contact Now

C090EAN01.1 AUO 9INCH 1280×720RGB 680CD/M2 WLED LVDS Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: C090EAN01.1 BRAND: AUO
SIZE: 9INCH RESOLUTION: 1280×720 RGB
BRIGHTNESS: 680CD/M2 TEMPERATURE RANGE: Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C
Highlight:

LVDS Industrial LCD Screen

,

Transmissive AUO TFT LCD

AUO C090EAN01.1 Application Details

Basic Information : Brand   Model C090EAN01.1
Type LCM a-Si TFT-LCD Used For
Screen Size 9.0" Alias -
Environment : Storage Temp. -40 ~~ 95 °C Operating Temp. -30 ~~ 85 °C
RoHS   Vibration 2.9G (28.4 m/s²)





AUO C090EAN01.1 Mechanical Details

Pixel Features :
Pixel Format
1280(RGB)×720, WXGA
Dot Pitch
0.05175×0.15525 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.15525×0.15525 mm (H×V) [163PPI]
Mechanical Size :
Display Area
198.72×111.78 mm (H×V)
Bezel Area
202.02×114.74 mm (H×V)
Outline Dim.
210×126.8 mm (H×V)
Outline Depth
7.1 (Typ.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style

Other Features :
Weight
TBD
Surface
Antiglare



AUO C090EAN01.1 Optical Details

Basic Information :
Brightness
680 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Optical Mode
AHVA, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
15/15 (Max.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.298; Wy:0.314
Color Numbers
16.7M (8-bit)
Color Temperature
7589K
Uniformity
1.25 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
70%
sRGB
96% coverage
Adobe RGB
72% coverage
DCI-P3
73% coverage
Rec.2020
52% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO C090EAN01.1 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
Yes (U/D, L/R)



AUO C090EAN01.1 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
6S3P
Life Time
10K(Min.) (Hours)
Replacement
-
Lamp Shape
3 strings
Position
Edge light type
Lamp Electrical :
Voltage Input
20.4V (Max.)
Current Input
80/85mA (Typ./Max.)
Consumption
4.9W (Max.)
Interface Features :
Type
FPC
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration


0.5 mm
8 pins
1 pcs
BLE-8PINS-AAANNCCC





AUO C090EAN01.1 Interface Detail

Signal Systerm :
LVDS (1 ch, 8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3/3.3V (Typ.)(VDD/VDDA)
Current Input
150/420mA (Typ.)(IDD/IDDA)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
HRS
FH52-40S-0.5SH
0.5 mm
40 pins
1 pcs




FAQ:

Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
