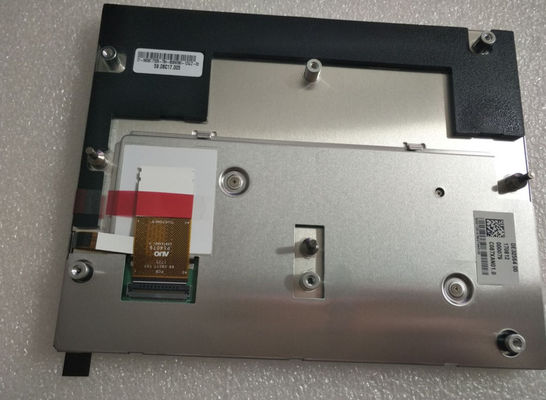

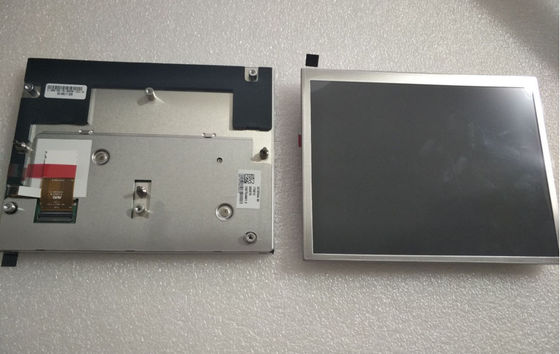

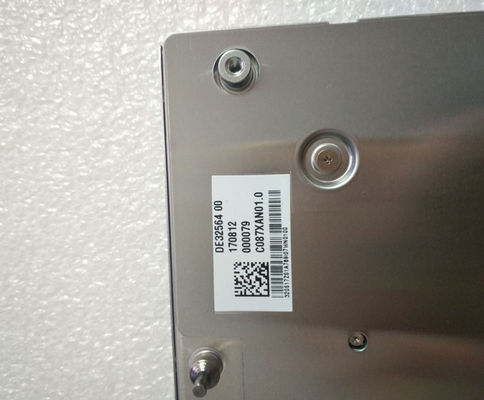

Product Details:
|
| MODEL NUMBER: | C087XAN01.0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 8.7INCH | RESOLUTION: | 1024×768RGB |
| BRIGHTNESS: | 700CD/M2 | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
| High Light: | LVDS Industrial LCD Screen,Transmissive AUO TFT LCD |
||
| Basic Info : | Panel Brand | Panel Model | C087XAN01.0 | |
|---|---|---|---|---|
| Diagonal Size | 8.7" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -30 ~ 85 °C | Storage Temp. | -40 ~ 95 °C |
| RoHS State | Vibration Rating | - |
| Pixel Features : | Pixel Format | 1024(RGB)×768 [XGA] | Dot Pitch | 0.0575×0.1725 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1725×0.1725 mm (H×V) [147PPI] | |
| Mechanical Size : | Display Area | 176.64×132.48 mm (H×V) | Bezel Area | 180.04×136.28 mm (H×V) |
| Outline Dim. | 192.5×152 mm (H×V) | Outline Depth | 10.4/20.2 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Rear mounting Pole | |||
| Other Features : | Weight | TBD | Surface | Antiglare |
| Basic Information : | Brightness | 700 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 15/30 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | - | Color Numbers | 16.7M (8-bit) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | FPC | Position | - | Lamp Driver | - |
| Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 40 pins | 1 pcs | |||||
