C070VW04 V7 AUO 7INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

C070VW04 V7 AUO 7INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

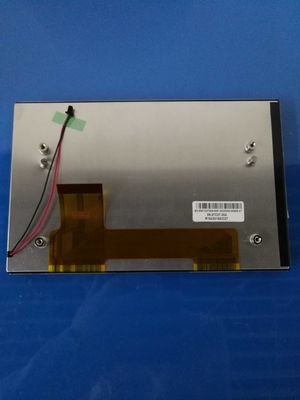

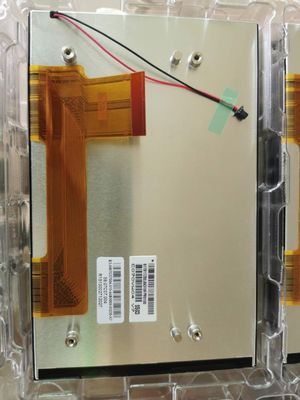

C070VW04 V7 AUO 7INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY C070VW04 V7 AUO 7INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY C070VW04 V7 AUO 7INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Large Image :  C070VW04 V7 AUO 7INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: C070VW04 V7
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 40 pcs / box 15 Kgs 520×340×250 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 100PCS
Contact Now

C070VW04 V7 AUO 7INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: C070VW04 V7 BRAND: AUO
SIZE: 7INCH RESOLUTION: 800×480 RGB
BRIGHTNESS: 450CD/M2 TEMPERATURE RANGE: Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C
Highlight:

LVDS Industrial LCD Screen

,

Transmissive AUO TFT LCD



AUO C070VW04 V7 Application Details

Basic Info :
Panel Brand

Panel Model
C070VW04 V7
Diagonal Size
7.0"
Application

Panel Type
a-Si TFT-LCD , LCM
Model Alias
C070VW04 V.7
Reliability :
Operating Temp.
-30 ~ 85 °C
Storage Temp.
-40 ~ 95 °C
RoHS State

Vibration Rating
2.9G (28.4 m/s²)



AUO C070VW04 V7 Mechanical Details

Pixel Features :
Pixel Format
800(RGB)×480, WVGA
Dot Pitch
0.0635×0.1905 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.1905×0.1905 mm (H×V) [133PPI]
Mechanical Size :
Display Area
152.4×91.44 mm (H×V)
Bezel Area
154.2×93.24 mm (H×V)
Outline Dim.
164.55×105.01 mm (H×V)
Outline Depth
5.6/12.05 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
15:9 (H:V)
Shape Style

Holes & Brackets :
Rear mounting Pole (4-Φ2.6)
Other Features :
Weight
145±15g
Surface
Antiglare



AUO C070VW04 V7 Optical Details

Basic Information :
Brightness
450 cd/m² (Typ.)
Contrast Ratio
1500:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Optical Mode
AMVA, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
10/25 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.318; Wy:0.323
Color Numbers
262K (6-bit)
Color Temperature
6261K
Uniformity
1.25 (Max.)(9 points)



AUO C070VW04 V7 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
No
Time Controller (T-CON) :
Embedded T-CON



AUO C070VW04 V7 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
4S3P
Life Time
10K(Min.) (Hours)
Replacement
-
Lamp Shape
Array
Position
Edge light type
Lamp Electrical :
Voltage Input
14/16V (Typ./Max.)
Current Input
80/85mA (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
SHR-02V-BK-B
1.0 mm
2 pins
1 pcs
BLE-2PINS-AC



AUO C070VW04 V7 Interface Detail

Signal Systerm :
Parallel RGB (1 ch, 6-bit)
Logic Voltage
0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Signal Electrical :
Voltage Input
3.3/12.5/15.0/-9.0V (Typ.)(VDD/AVDD/VGH/VGL)
Current Input
6.7/26.0/0.15/0.2mA (Typ.)(IDD/IAIDD/IGH/IGL)
Interface Features :
Type
FPC
Position
-
FPC Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration


0.5 mm
50 pins
1 pcs




FAQ:



Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.





C070VW04 V7 AUO 7INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY 0
