Product Details:
|

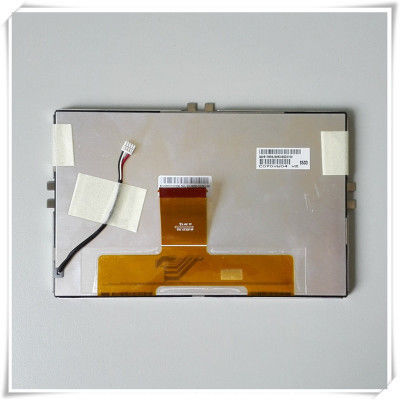

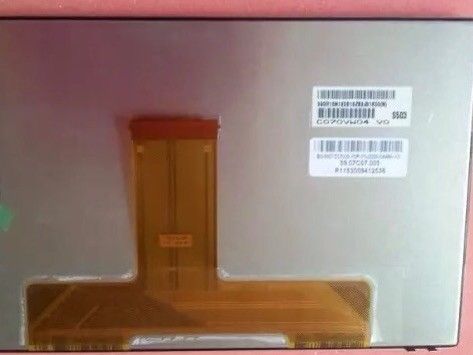

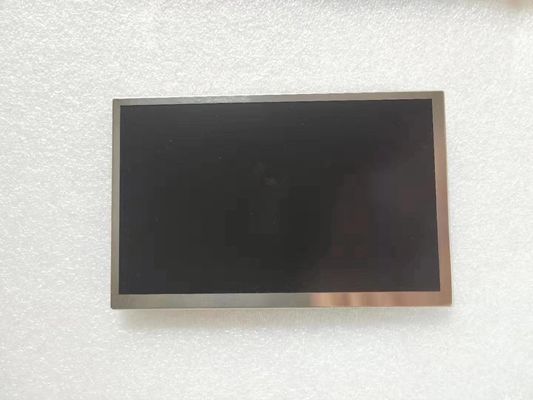

| MODEL NUMBER: | C070VW04 V5 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 7INCH | RESOLUTION: | 800×480 RGB |
| BRIGHTNESS: | 700CD/M2 | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
| High Light: | LVDS Industrial LCD Screen,Transmissive AUO TFT LCD |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
 |
C070VW04 V5 | a-Si TFT-LCD , LCM | C070VW04 V.5 | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
|
-30 ~ 85 °C | -40 ~ 95 °C | 2.9G (28.4 m/s²) |
| Panel Size : | 7.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0635×0.1905 mm | 0.1905×0.1905 mm [133PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 152.4×91.44 mm | - | 174.8×111.01 mm | 6.2±0.3 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 15:9 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (4-Φ2.5) on left, right slugs | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 185±18g | Antiglare, Antireflection | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 700 cd/m² (Typ.) | AMVA, Normally Black, Transmissive | 400:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/80 (Typ.)(CR≥10) | Symmetry | 10/30 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6799K | 16.2M (6-bit + FRC) | X:0.308; Y:0.325 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 54% | 75% | 56% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 56% | 40% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25 (Max.)(9 points) |
||
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | - | |
| Frame Rate : | 60Hz Reverse Scan :
| Yes (U/D, L/R) |
|---|---|---|
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 8.7/26.0/0.15/0.2mA (Typ.)(IDD/AIDD/IGH/IGL) | 3.3/12.5/15.0/-9.0V (Typ.)(VDD/AVDD/VGHVGL) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 64 pins | ||||
| Backlight Features: | Type | Position | Shape | Amount |
Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 3 strings | 7S3P | 10K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption |
|||
| 80/85mA (Typ./Max.) | 22.4/26.25V (Typ./Max.) | |||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | GHR-04V-S | 1 pcs | 1.25 mm | 4 pins | BLE-4PINS-ACCC | |
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 40 pcs / box | 15.0 Kgs | 600×350×210 mm (L×W×H) |
