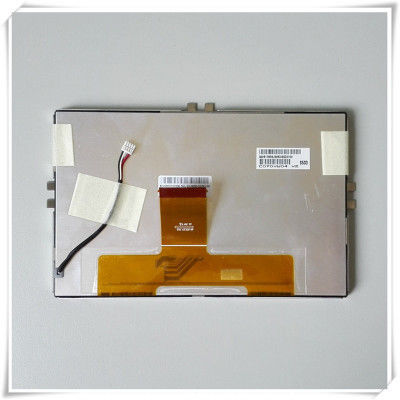

C070VW04 V2 AUO 7INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

C070VW04 V2 AUO 7INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
C070VW04 V2 AUO 7INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY C070VW04 V2 AUO 7INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY C070VW04 V2 AUO 7INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Large Image :  C070VW04 V2 AUO 7INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: C070VW04 V2
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 40 pcs / box 15 Kgs 520×340×250 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 300PCS
Contact Now

C070VW04 V2 AUO 7INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: C070VW04 V2 BRAND: AUO
SIZE: 7INCH RESOLUTION: 800×480 RGB
BRIGHTNESS: 450CD/M2 TEMPERATURE RANGE: Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C
Highlight:

LVDS Industrial LCD Screen

,

Transmissive AUO TFT LCD



AUO C070VW04 V2 Application Details

Basic Detail :
Manufacturer

Model Name
C070VW04 V2
Panel Type
a-Si TFT-LCD , LCM
Another Name
C070VW04 V.2
Panel Size
7.0 inch
Designed For

Maximum Ratings :
OP Temperature
-30 ~ 85 °C
ST Temperature
-40 ~ 90 °C
RoHS

Vibration Level
2.9G (28.4 m/s²)



AUO C070VW04 V2 Optical Details

Basic Detail :
Luminance
450 cd/m² (Typ.)
Contrast Ratio
600:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
10/25 (Typ.)(Tr/Td) ms
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Operating Mode
AMVA, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.318; Wy:0.318
Support Color
262K (6-bit)
Color Temperature
6296K
White Variation
1.25 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
55%
sRGB
77% coverage
Adobe RGB
58% coverage
DCI-P3
57% coverage
Rec.2020
41% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO C070VW04 V2 Mechanical Details

Pixel Features :
Number of Pixel
800(RGB)×480, WVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0635×0.1905 mm
Pixel Pitch(W×H)
0.1905×0.1905 mm [133PPI]
Physical Size :
Active Viewing
152.4(W)×91.44(H) mm
Overall Dim.
165.55(W)×106.01(H) mm
Bezel Opening
154.4(W)×93.44(H) mm
Overall Depth
7.18±0.3 mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
15:9
Shape Style

Fixation :
Face mounting holes (3 pcs) on left, right, up slugs
Other Detail :
Mass
185±18g
Surface
Antiglare, Antireflection



AUO C070VW04 V2 Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
Yes (U/D, L/R)
Time Controller (T-CON) :
Embedded T-CON



AUO C070VW04 V2 Interface Detail

Signal Electrical :
Input Current
6.7/26.0/0.15/0.2mA (Typ.)(IDD/IAIDD/IGH/IGL)
Input Voltage
3.3/12.5/15.0/-9.0V (Typ.)(VDD/AVDD/VGHVGL)
Consumption
-
Signal Interface
Parallel RGB (1 ch, 6-bit)
Logic Voltage :
0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment


0.5 mm
50 pins
1 pcs



AUO C070VW04 V2 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
6S3P
Position
Edge light type
Exchange
-
Lamp Shape
3 strings
Lamp Life
10K(Min.) (Hours)
Lamp Electrical :
Input Voltage
21.0/24.0V (Typ./Max.)
Input Current
80/85mA (Typ./Max.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JST
GHR-04V-S
1.25 mm
4 pins
1 pcs
BLE-4PINS-ACCC
Backlight Driver :
No





FAQ:



Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



C070VW04 V2 AUO 7INCH 800×480RGB 450CD/M2 WLED TTL Operating Temp.: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY 0
