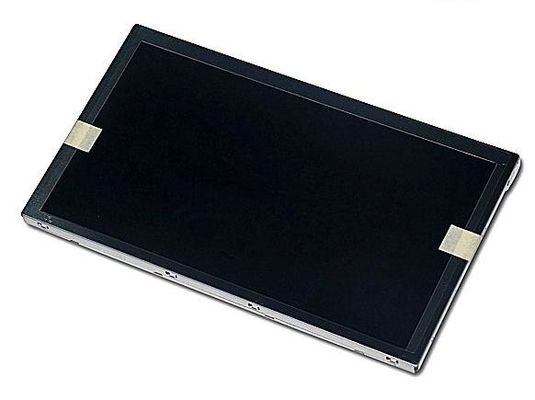

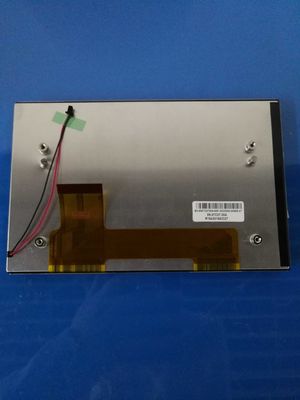

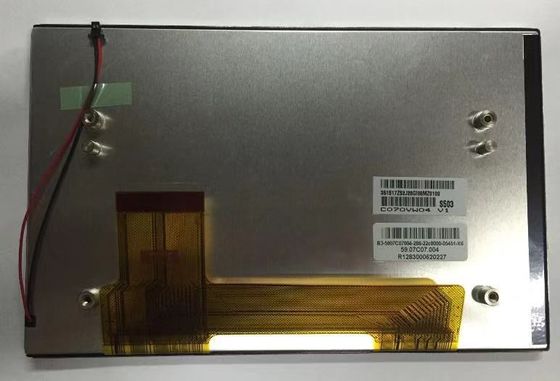

Product Details:
|
| MODEL NUMBER: | C070VW04 V1 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 7INCH | RESOLUTION: | 800×480 RGB |
| BRIGHTNESS: | 450CD/M2 | TEMPERATURE RANGE: | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | ||
| Highlight: | LVDS Industrial LCD Screen,Transmissive AUO TFT LCD |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| C070VW04 V1 | a-Si TFT-LCD , LCM | C070VW04 V.1 | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -30 ~ 85 °C | -40 ~ 95 °C | 2.9G (28.4 m/s²) |
| Panel Size : | 7.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0635×0.1905 mm | 0.1905×0.1905 mm [133PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 152.4×91.44 mm | 154.2×93.24 mm | 164.55×105.01 mm | 5.6/12.05 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 15:9 (W : H) | Landscape type | ||
| Fixation : | Rear mounting holes (4-M2.6) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 145g (Typ.) | Antiglare | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 450 cd/m² (Typ.) | AMVA, Normally Black, Transmissive | 1500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/80 (Typ.)(CR≥10) | Symmetry | 10/25 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6261K | 262K (6-bit) | X:0.318; Y:0.323 | |
| Luminance Variation : | 1.25 (Max.)(9 points) | ||
| Power Consumption : | 4.75W (Typ.) |
|---|---|
| Frame Rate : | 60Hz |
| Reverse Scan : | No |
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 6.7/26.0/0.15/0.2mA (Typ.)(IDD/IAIDD/IGH/IGL) | 3.2/12.5/15.0/-9.0V (Typ.)(VDD/AVDD/VGH/VGL) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 50 pins | ||||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | Array | 4S3P | 10K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 80/90mA (Typ./Max.) | 14/16V (Typ./Max.) | |||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | SHR-02V-BK-B | 1 pcs | 1.0 mm | 2 pins | BLE-2PINS-AC | |
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 40 pcs / box | 15 Kgs | 520×340×250 mm (L×W×H) |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 164.55(W)×105.01(H)×12.05(D) mm, viewing area size of 154.2(W)×93.24(H) mm, with surface treament of Antiglare, net weight of 145g (Typ.). As a AMVA, Normally Black, Transmissive LCM product, C070VW04 V1 can provides 450 cd/m² display brightness 1500:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 4S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. C070VW04 V1 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.2/12.5/15.0/-9.0V (Typ.)(VDD/AVDD/VGH/VGL).
