Product Details:
|
| MODEL NUMBER: | C070VW02 V1 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 7INCH | RESOLUTION: | 800×480 RGB |
| BRIGHTNESS: | 350CD/M2 | TEMPERATURE RANGE: | Storage Temp.: -40 ~ 95 °C Operating Temp.: -40 ~ 80 °C |
| High Light: | LVDS Industrial LCD Screen,Transmissive AUO TFT LCD |
||
| Basic Information : | Brand | Model | C070VW02 V1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 7.0" | Alias | C070VW02 V.1 | |
| Environment : | Storage Temp. | -40 ~~ 95 °C | Operating Temp. | -40 ~~ 80 °C |
| RoHS | Vibration | - |
| Pixel Features : | Resolution | 800(RGB)×480, WVGA | Dot Pitch(mm) | 0.0635×0.1905 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1905×0.1905 (H×V) [133PPI] | |
| Mechanical Size : | Active Area(mm) | 152.4(H) × 91.44(V) | Bezel Area(mm) | 153.6(H) × 92.64(V) |
| Outline Dim.(mm) | 170.8(H) × 107.95(V) | Depth(mm) | 11.7/21.5 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 15:9 (H:V) | Orientation | Landscape type | |
| Touch Panel : | Touch Points | - | Touch Panel | 4-wire Resistive Touch |
| Mounting : | Side mounting holes (4-Φ4) on left, right slugs | |||
| Other Spec : | Weight | 300±30g | Treatment | Antiglare (Haze 40%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 350 (Min.) | Contrast Ratio | 300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 20/30 (Max.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.300; Y:0.330 | Display Colors | 262K (6-bit) |
| Color Temperature | 7203K | White Uniformity | - |
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Voltage Supply | 3.3/9.8/15/-7V (Typ.)(VDD/AVDD/VGH/VGL) | Current Supply | 80/30/0.15/0.15mA (Max.)(ICC/IDD/IGH/IGL) | ||
|---|---|---|---|---|---|---|
| Signal Type : | TTL (1 ch, 6-bit) | Signal Voltage | 0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD | |||
| Interface Features : | Position | - | Type | Connector | ||

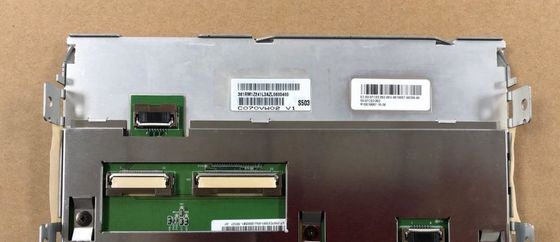

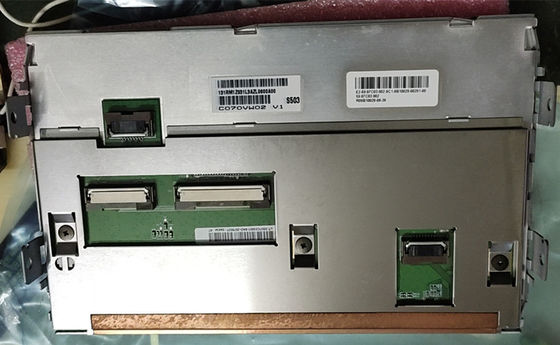

| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| SMK | CFP5432-0352F | 1 pcs | 32 pins | 0.5 mm | ||
| SMK | CFP5450-0352F | 1 pcs | 50 pins | 0.5 mm | ||
| SMK | CFP8408-0352F | 2 pcs | 8 pins | 1.0 mm | ||
| Backlight Features: | Shape | 4 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 4S4P | Life Time | 10K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 14.0±1.2V | Current Supply | 80/100mA (Typ./Max.) | ||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
