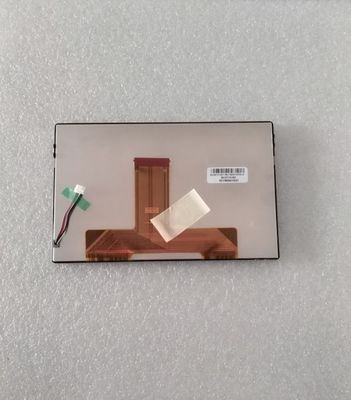

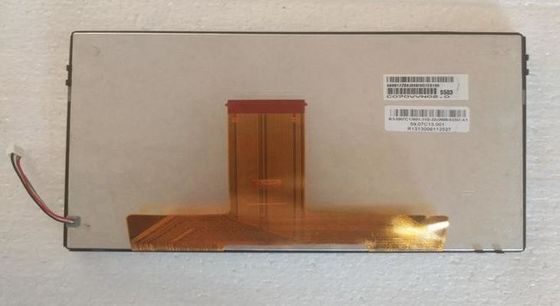

Product Details:
|
| MODEL NUMBER: | C070VVN02.0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 7INCH | RESOLUTION: | 800×480 RGB |
| BRIGHTNESS: | 650CD/M2 | TEMPERATURE RANGE: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
| High Light: | LVDS Industrial LCD Screen,Transmissive AUO TFT LCD |
||
| Basic Info : | Panel Brand | Panel Model | C070VVN02.0 | |
|---|---|---|---|---|
| Diagonal Size | 7.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -30 ~ 85 °C | Storage Temp. | -40 ~ 95 °C |
| RoHS State | Vibration Rating | 2.9G (28.4 m/s²) |
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.0635×0.1905 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1905×0.1905 mm (H×V) [133PPI] | |
| Mechanical Size : | Display Area | 152.4×91.44 mm (H×V) | Bezel Area | 154.4×93.44 mm (H×V) |
| Outline Dim. | 164.55×105.01 mm (H×V) | Outline Depth | 6.67 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 15:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 165g (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 650 cd/m² (Typ.) | Contrast Ratio | 2000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Optical Mode | AMVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 10/20 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.305; Wy:0.340 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6808K | White Uniformity | 1.25 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 54% | sRGB | 74% coverage |
| Adobe RGB | 57% coverage | DCI-P3 | 56% coverage | |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Time Controller (T-CON) : | Need external T-CON |
| Back-light Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Life Time | 10K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 6S3P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 21/24V (Typ./Max.) | Current Input | 80/85mA (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | GHR-04V-S | 1.25 mm | 4 pins | 1 pcs | ||
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/12.5/15/-9V (Typ.)(VDD/AVDD/VGH/VGL) | Current Input | 6.7/26/0.15/0.2mA (Typ.)(IDD/AIDD/IGH/IGL) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | FH28D-50S-0.5SH | 0.5 mm | 50 pins | 1 pcs | ||
