Product Details:
|
| MODEL NUMBER: | C070VVN01.0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 7INCH | RESOLUTION: | 800×480 RGB |
| BRIGHTNESS: | 500CD/M2 | TEMPERATURE RANGE: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
| High Light: | LVDS Industrial LCD Screen,Transmissive AUO TFT LCD |
||

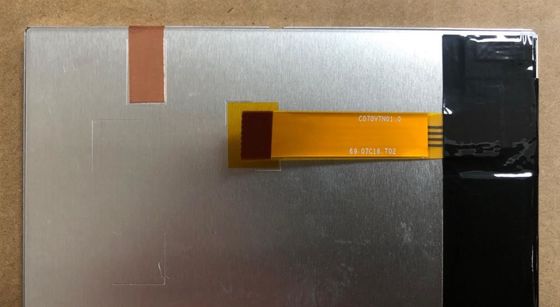

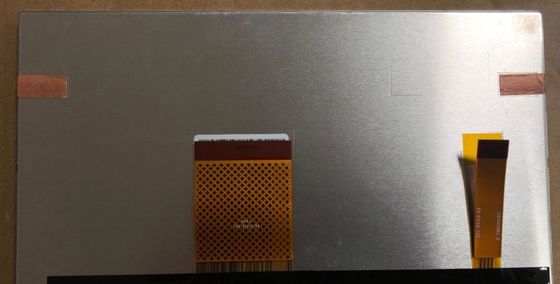

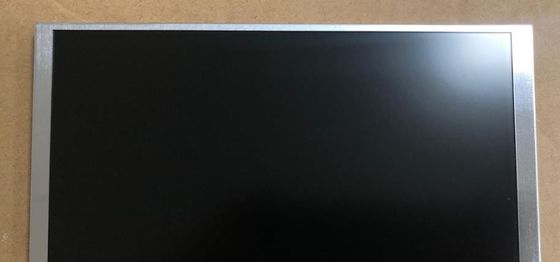

C070VVN01.0 is a 7.0" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C , and the maximal vibration level of 2.9G (28.4 m/s²). It's general features are summarized by Panelook in the following: Wide Temperature, 3G Vibration, WLED Backlight, U/D,L/R Reverse . Based on its features, Panelook recommend that this model be applied to Automotive Display etc. Now this model is discontinued. There are 1 items stock and 2 suppliers of this model on Panelook. We inputted this model's specification on Feb 11 2020 for the first time. If you want to embed the LCM in your future product, Panelook strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail of C070VVN01.0. The production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. The above parameters are not from the datasheet, only as a reference, please use with caution!
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| C070VVN01.0 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -30 ~ 85 °C | -40 ~ 95 °C | 2.9G (28.4 m/s²) |
| Panel Size : | 7.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0635×0.1905 mm | 0.1905×0.1905 mm [133PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 152.4×91.44 mm | - | - | - | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 15:9 (W : H) | Landscape type | ||
| Fixation : | Rear mounting Pole (4 pcs) | |||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| - | AMVA, Normally Black, Transmissive | - | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/80/80 (Typ.)(CR≥10) | Symmetry | - |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Time Controller (T-CON) : | Need external T-CON |
