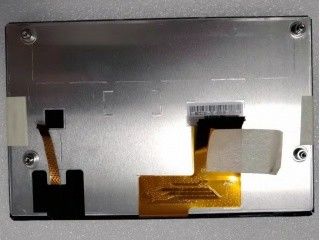

Product Details:
|
| MODEL NUMBER: | C070VAN02.0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 7INCH | RESOLUTION: | 800×480 RGB |
| BRIGHTNESS: | 1000CD/M2 | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
| High Light: | WLED LVDS AUO LCD Display,CCFL LVDS AUO TFT LCD |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| C070VAN02.0 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -30 ~ 85 °C | -40 ~ 95 °C | 2.9G (28.4 m/s²) |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 1000 (Typ.) | 80/80/80/80 (Typ.)(CR≥100) | 9/11 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | AHVA, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | 262K/16.7M (6-bit / 8-bit) | - | |
| Performance : | 3D Tech | Sunlight Visibility | Reflectance |
| - | Sunlight Readable | - |
| Panel Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800×480(RGB) [WVGA] | RGB Horizontal Stripe | 0.1905×0.1905 [133PPI] | 0.1905×0.0635 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 152.4(H) × 91.44(V) | - | 167.3(H) × 109.2(V) | 7.95 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 15:9 (H:V) | ||
| Mounting : | Rear mounting Pole (4 pcs) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 174±17g | - |
Antiglare |
||
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Vertical Frequency : | 60Hz |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 20K(Typ.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | FPC | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/13/20/-8V (Typ.)(VDD/AVDD/VGH/VGL) | 14/22/1.17/1.07A (Typ.)(IDD/AIDD/IGH/IGL) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 6/8-bit) + SPI | FPC | ||||

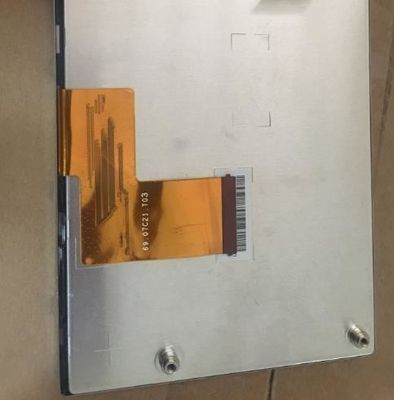

| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 50 pins | 1 pcs | ||||
