C070VAN01.3 AUO 7INCH 800×480RGB 500CD/M2 WLED LVDS Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY

C070VAN01.3 AUO 7INCH 800×480RGB 500CD/M2 WLED LVDS Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY

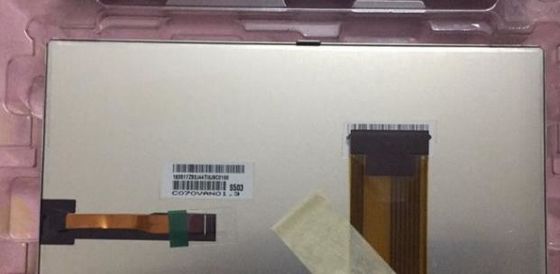

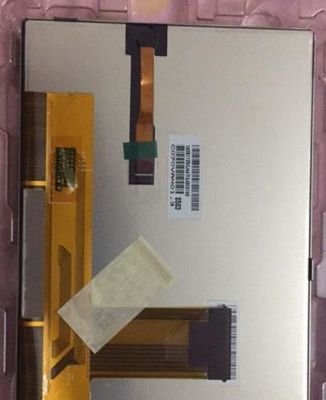

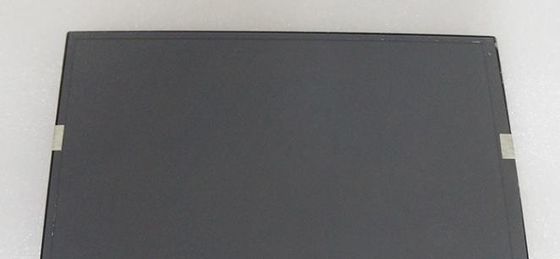

C070VAN01.3 AUO 7INCH 800×480RGB 500CD/M2 WLED LVDS Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY C070VAN01.3 AUO 7INCH 800×480RGB 500CD/M2 WLED LVDS Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY C070VAN01.3 AUO 7INCH 800×480RGB 500CD/M2 WLED LVDS Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY

Large Image :  C070VAN01.3 AUO 7INCH 800×480RGB 500CD/M2 WLED LVDS Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: C070VAN01.3
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 800PCS
Contact Now

C070VAN01.3 AUO 7INCH 800×480RGB 500CD/M2 WLED LVDS Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: C070VAN01.3 BRAND: AUO
SIZE: 7INCH RESOLUTION: 800×480 RGB
BRIGHTNESS: 500CD/M2 TEMPERATURE RANGE: Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C
Lamp Type: WLED Signal Interface: LVDS
High Light:

WLED LVDS AUO LCD Display

,

CCFL LVDS AUO TFT LCD

AUO C070VAN01.3 Overview

The C070VAN01.3 is a 7.0 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C .







AUO C070VAN01.3 Application Details

Basic Detail :
Manufacturer

Model Name
C070VAN01.3
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
7.0 inch
Designed For

Maximum Ratings :
OP Temperature
-30 ~ 85 °C
ST Temperature
-40 ~ 95 °C
RoHS

Vibration Level
-
Features :
  •



AUO C070VAN01.3 Optical Details

Basic Detail :
Luminance
-
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
-
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Operating Mode
AHVA, Normally Black, Transmissive
Color Performance :
Chromaticity
-
Support Color
16.7M (8-bit)



AUO C070VAN01.3 Mechanical Details

Pixel Features :
Number of Pixel
800(RGB)×480, WVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0635×0.1905 mm
Pixel Pitch(W×H)
0.1905×0.1905 mm [133PPI]
Physical Size :
Active Viewing
152.4(W)×91.44(H) mm
Overall Dim.
-
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
15:9
Shape Style

Fixation :
Rear mounting holes (4 pcs)
Other Detail :
Mass
-
Surface
Antiglare, Hard coating (3H)



AUO C070VAN01.3 Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
Yes (U/D, L/R)



AUO C070VAN01.3 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
-



FAQ:

Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.


C070VAN01.3 AUO 7INCH 800×480RGB 500CD/M2 WLED LVDS Storage Temp.: -40 ~ 95 °C INDUSTRIAL LCD DISPLAY 0
