Product Details:
|

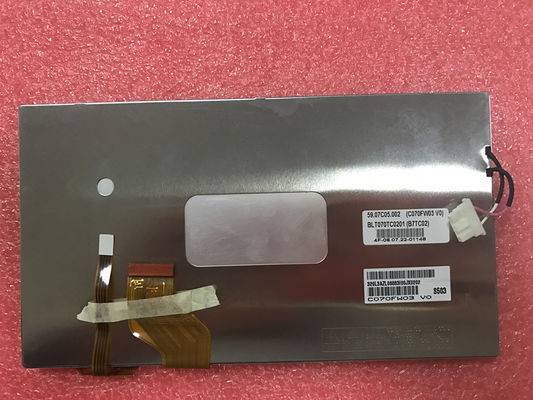

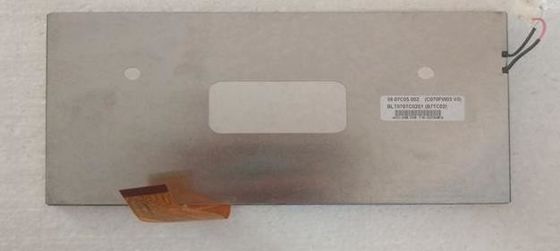

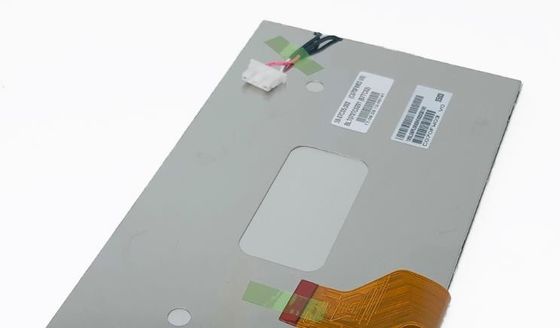

| MODEL NUMBER: | C070FW03 V0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 7INCH | RESOLUTION: | 480×234RGB |
| BRIGHTNESS: | 475CD/M2 | TEMPERATURE RANGE: | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
| High Light: | WLED LVDS AUO LCD Display,CCFL LVDS AUO TFT LCD |
||
| Basic Information : | Brand | Model | C070FW03 V0 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 7.0" | Alias | C070FW03 V.0 | |
| Environment : | Storage Temp. | -40 ~~ 95 °C | Operating Temp. | -30 ~~ 85 °C |
| RoHS | Vibration | 2.9G (28.4 m/s²) |
| Pixel Features : | Resolution | 480(RGB)×234 | Dot Pitch(mm) | 0.1085×0.3520 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.3255×0.3520 (H×V) [76PPI] | |
| Mechanical Size : | Active Area(mm) | 156.24(H) × 82.368(V) | Bezel Area(mm) | 159.24(H) × 84.87(V) |
| Outline Dim.(mm) | 167(H) × 93(V) | Depth(mm) | 6.25±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 17:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | TBD | Treatment | Antiglare (Haze 25%) |
| Basic Information : | Luminance(cd/m²) | 475 (Typ.) | Contrast Ratio | 300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 60/60/45/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 15/20 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.310; Y:0.330 | Display Colors | Full color |
| Color Temperature | 6638K | White Uniformity | - |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Time Controller (T-CON) : | Need external T-CON |
| Signal Electrical : | Voltage Supply | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) | Current Supply | 3/17/0.2/0.8mA (Typ.)(ICC/IDD/IGH/IGL) | ||
|---|---|---|---|---|---|---|
| Signal Type : | TFT Specific Analog RGB | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 30 pins | 0.5 mm | ||||
| Backlight Features: | Shape | L shape | Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 1 pcs | Life Time | 10K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 560/660V (Typ./Max.) | Current Supply | 6.5/7.0mA (Typ./Max.) | ||
| Frequency | 40/80KHz (Min./Max.) | Startup Voltage | 1060/1380V (Max.)(Ta=+25/0℃) | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 1 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
