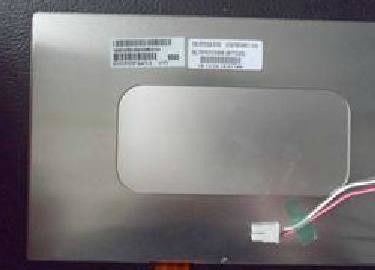

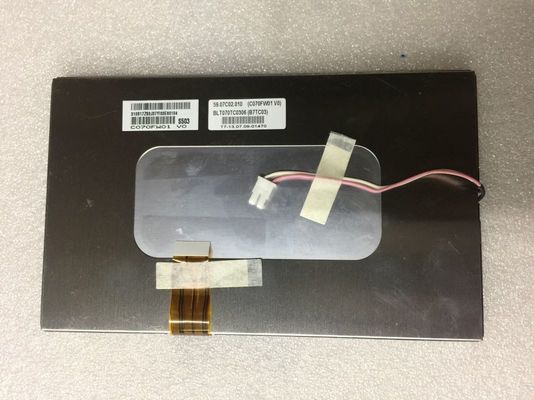

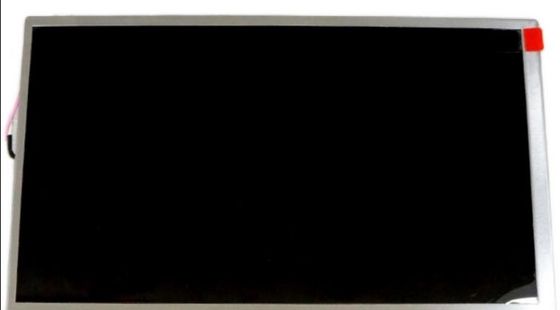

Product Details:
|
| MODEL NUMBER: | C070FW01 V0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 7INCH | RESOLUTION: | 480×234RGB |
| BRIGHTNESS: | 500CD/M2 | TEMPERATURE RANGE: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
| High Light: | WLED LVDS AUO LCD Display,CCFL LVDS AUO TFT LCD |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| C070FW01 V0 | a-Si TFT-LCD , LCM | C070FW01 V.0 | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -30 ~ 85 °C | -40 ~ 95 °C | 2.9G (28.4 m/s²) |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 500 (Typ.) | 60/60/40/60 (Typ.)(CR≥10) | 12/18 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 300 : 1 (Typ.) (Transmissive) |
| Panel Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 480(RGB)×234 | RGB Vertical Stripe | 0.321×0.370 [76PPI] | 0.107×0.370 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 154.08(H) × 86.58(V) | 156.08(H) × 88.58(V) | 164.9(H) × 100(V) | 6.0±0.3 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | ||
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 160±10g | - | Antiglare (Haze 25%) | ||
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Time Controller (T-CON) : | Need external T-CON |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 1 pcs | L shape | 10K(Min.) | - | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 570±57V | 6.0/6.5mA (Typ./Max.) | |||||
| Operating Frequency | Kick-off Voltage | |||||
| 50/80KHz (Min./Max.) | 1110/1440/1870V (Max.)(Ta=+25/0/-30℃) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLL-2PINS-HL | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) | 3/17/0.2/0.8mA (Typ.)(ICC/IDD/IGH/IGL) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | TFT Specific Analog RGB | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 26 pins | 1 pcs | ||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
