Product Details:
|

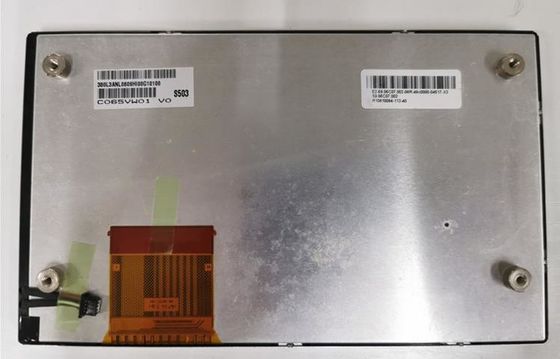

| MODEL NUMBER: | C065VW01 V0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 6.5INCH | RESOLUTION: | 800×480 RGB |
| BRIGHTNESS: | 700CD/M2 | TEMPERATURE RANGE: | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
| High Light: | WLED LVDS AUO LCD Display,CCFL LVDS AUO TFT LCD |
||
| Basic Info : | Panel Brand | Panel Model | C065VW01 V0 | |
|---|---|---|---|---|
| Diagonal Size | 6.5" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | C065VW01 V.0 | |
| Reliability : | Operating Temp. | -30 ~ 85 °C | Storage Temp. | -40 ~ 95 °C |
| RoHS State | Vibration Rating | 2.9G (28.4 m/s²) |
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.05975×0.165 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.17925×0.165 mm (H×V) [144PPI] | |
| Mechanical Size : | Display Area | 143.4×79.2 mm (H×V) | Bezel Area | 145.6×81.4 mm (H×V) |
| Outline Dim. | 157.2×94.4 mm (H×V) | Outline Depth | 6.5/10.5 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||

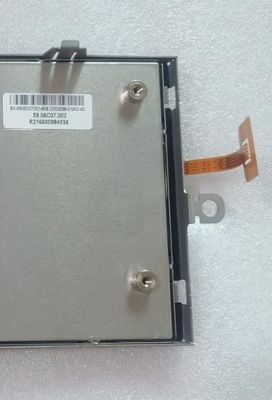

| Holes & Brackets : | Rear mounting Pole (4-M2.6) | |||
| Other Features : | Weight | 138±13.8g | Surface | Antiglare |
| Basic Information : | Brightness | 700 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Optical Mode | AMVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 20/15 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.328; Wy:0.328 | Color Numbers | 262K (6-bit) |
| Color Temperature | 5731K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 55% | sRGB | 77% coverage |
| Adobe RGB | 58% coverage | DCI-P3 | 57% coverage | |
| Rec.2020 | 41% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Lamp Shape | Array | Lamp Type | WLED | Life Time | 10K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 6S3P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 21/24V (Typ./Max.) | Current Input | 80/90mA (Typ./Max.) | ||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | SHR-04V-S | 1.0 mm | 4 pins | 1 pcs | BLE-4PINS-ACCC | |
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/12.6/15.5/-9V (Typ.)(VDD/AVDD/VGH/VGL) | Current Input | - | ||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 60 pins | 1 pcs | ||||
