Product Details:
|
| MODEL NUMBER: | C065GW03 V3 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 6.5INCH | RESOLUTION: | 400×240RGB |
| BRIGHTNESS: | 500CD/M2 | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
| High Light: | WLED LVDS AUO LCD Display,CCFL LVDS AUO TFT LCD |
||

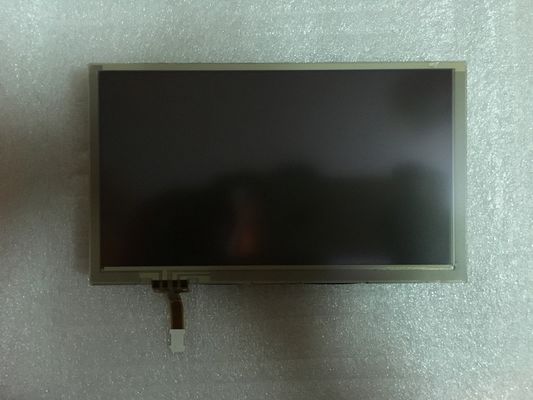

The C065GW03 V3 (Alias: C065GW03 V.3) is a 6.5 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C .
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| C065GW03 V3 | a-Si TFT-LCD , LCM | C065GW03 V.3 | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -30 ~ 85 °C | -40 ~ 95 °C | - |
| Screen Size : | 6.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 400(RGB)×240, WQVGA | RGB Vertical Stripe | 0.1195×0.3305 mm | 0.3585×0.3305 mm [72PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 143.4×79.326 mm | - | - | - | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| - | - | Antiglare, Hard coating (3H) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| - | TN, Normally White, Transmissive | 400:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 60/60/45/60 (Typ.)(CR≥10) | 15/20 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6638K | 262K (6-bit) | X:0.310; Y:0.330 | |
| White Uniformity : | 1.30 (Max.)(5 points) | ||
