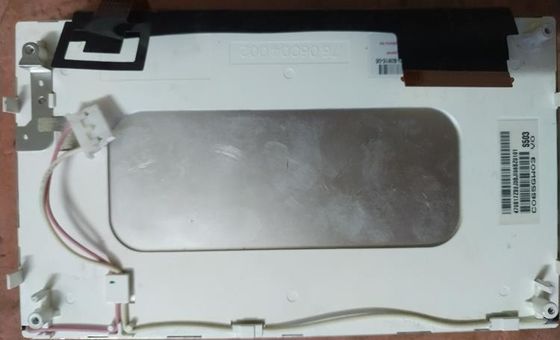

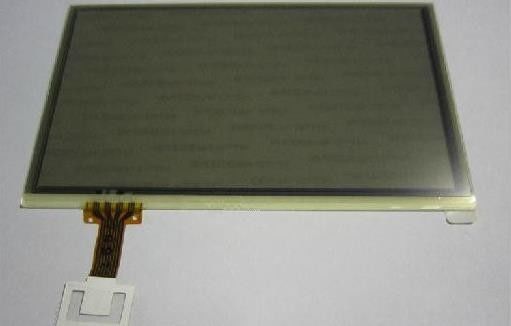

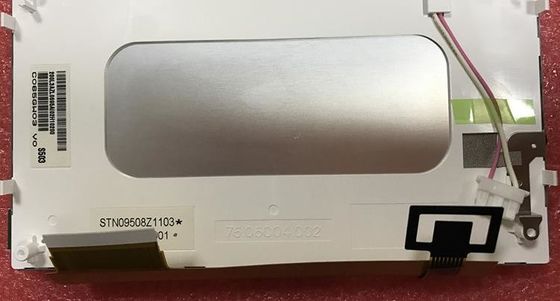

C065GW03 V0 AUO 6.5INCH 400×240RGB 450CD/M2 CCFL TTL Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

C065GW03 V0 AUO 6.5INCH 400×240RGB 450CD/M2 CCFL TTL Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY
C065GW03 V0 AUO 6.5INCH 400×240RGB 450CD/M2 CCFL TTL Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY C065GW03 V0 AUO 6.5INCH 400×240RGB 450CD/M2 CCFL TTL Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY C065GW03 V0 AUO 6.5INCH 400×240RGB 450CD/M2 CCFL TTL Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Large Image :  C065GW03 V0 AUO 6.5INCH 400×240RGB 450CD/M2 CCFL TTL Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: C065GW03 V0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 36 pcs / box 9.5 Kgs 520×340×250 mm
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 200PCS
Contact Now

C065GW03 V0 AUO 6.5INCH 400×240RGB 450CD/M2 CCFL TTL Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: C065GW03 V0 BRAND: AUO
SIZE: 6.5INCH RESOLUTION: 400×240RGB
BRIGHTNESS: 450CD/M2 TEMPERATURE RANGE: Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C
Highlight:

WLED LVDS AUO LCD Display

,

CCFL LVDS AUO TFT LCD

AUO C065GW03 V0 Application Details

Basic Info :
Panel Brand

Panel Model
C065GW03 V0
Diagonal Size
6.5"
Application

Panel Type
a-Si TFT-LCD , LCM
Model Alias
C065GW03 V.0
Reliability :
Operating Temp.
-30 ~ 85 °C
Storage Temp.
-40 ~ 95 °C
RoHS State

Vibration Rating
2.9G (28.4 m/s²)
Specific Features :
  •



AUO C065GW03 V0 Mechanical Details

Pixel Features :
Pixel Format
400(RGB)×240, WQVGA
Dot Pitch
0.1195×0.3305 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.3585×0.3305 mm (H×V) [72PPI]
Mechanical Size :
Display Area
143.4×79.326 mm (H×V)
Bezel Area
-
Outline Dim.
155×90.83 mm (H×V)
Outline Depth
16.25 (Typ.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style

Touch Screen :
Touch Points
-
TP Signal
-
TP Controller
-
Touchscreen
4-wire Resistive Touch
Holes & Brackets :
Rear mounting holes (4-Φ1.5)
Other Features :
Weight
200g (Typ.)
Surface
Hard coating (3H)



AUO C065GW03 V0 Optical Details

Basic Information :
Brightness
450 cd/m² (Typ.)
Contrast Ratio
300:1 (Typ.) (Transmissive)
Viewing Angle
60/60/45/60 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
15/20 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.310; Wy:0.340
Color Numbers
262K (6-bit)
Color Temperature
6551K
Uniformity
1.30 (Max.)(5 points)
1931 Color Gamut :
NTSC Ratio
51%
sRGB
68% coverage
Adobe RGB
53% coverage
DCI-P3
52% coverage
Rec.2020
38% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO C065GW03 V0 Backlight Details

Back-light Features :
Lamp Type
CCFL
Amount
1 pcs
Life Time
10K(Min.) (Hours)
Replacement
-
Lamp Shape
L shape
Position
Edge light type
Lamp Electrical :
Voltage Input
540±50V
Current Input
6.5/7.0mA (Typ./Max.)
Frequency
60/80KHz (Typ./Max.)
Kick-off Voltage
1000/1300/1580V (Max.)(Ta=+25/0/-30℃)
Interface Features :
Type
Connector
Position
-
Lamp Driver
No
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
BHR-03VS-1
4.0 mm
3 pins
1 pcs
BLL-3PINS-HNL



AUO C065GW03 V0 Interface Detail

Signal Systerm :
Parallel RGB (1 ch, 6-bit)
Logic Voltage
0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC
Signal Electrical :
Voltage Input
3.3/9.8/15/-7V (Typ.)(VCC/AVDD/VGH/VGL)
Current Input
3.5/20/0.1/-0.1mA (Typ.)(ICC/IDD/IGH/IGL)
Interface Features :
Type
FPC
Position
-
FPC Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration


0.5 mm
55 pins
1 pcs



FAQ:



Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



 C065GW03 V0 AUO 6.5INCH 400×240RGB 450CD/M2 CCFL TTL Operating Temperature: -30 ~ 85 °C INDUSTRIAL LCD DISPLAY 0
