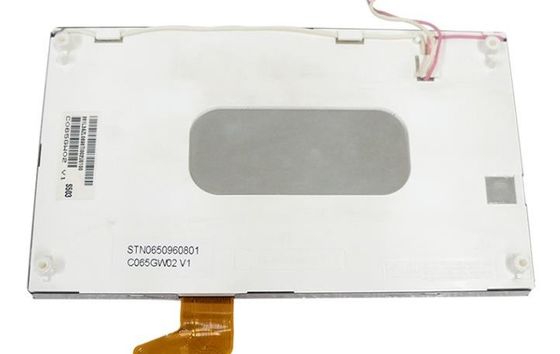

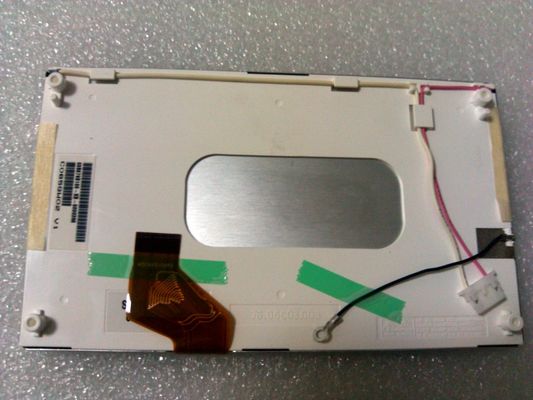

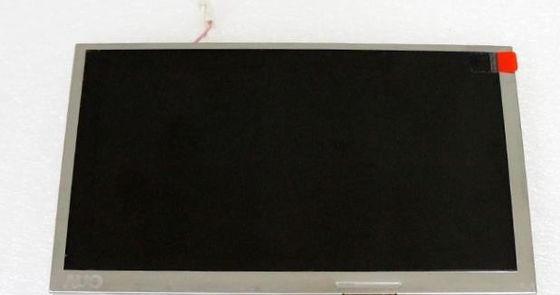

Product Details:
|
| MODEL NUMBER: | C065GW02 V1 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 6.5INCH | RESOLUTION: | 400×234RGB |
| BRIGHTNESS: | 550CD/M2 | TEMPERATURE RANGE: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
| High Light: | WLED LVDS AUO LCD Display,CCFL LVDS AUO TFT LCD |
||
| Basic Detail : | Manufacturer | Model Name | C065GW02 V1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | C065GW02 V.1 | |
| Panel Size | 6.5 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 95 °C |
| Vibration Level | 2.9G (28.4 m/s²) | RoHS | - |
| Basic Information : | Luminance | 550 cd/m² (Typ.) | Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 15/20 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 60/60/45/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | Full color |
| Color Temperature | 6638K | White Uniformity | 1.30 (Max.)(9 points) |
| Pixel Features : | Number of Pixel | 400(RGB)×234 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.1195×0.339 mm | Pixel Pitch(W×H) | 0.3585×0.339 mm [71PPI] | |
| Physical Size : | Active Viewing | 143.4(W)×79.326(H) mm | Overall Dim. | 155(W)×90.83(H) mm |
| Bezel Opening | 144.8(W)×80.53(H) mm | Overall Depth | 8.15 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Fixation : | Rear mounting holes | |||
| Other Detail : | Mass | 150±10g | Surface | Antiglare (Haze 25%) |
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Power Consumption : | 3.1W (Typ.) |
| Time Controller (T-CON) : | Need external T-CON: UPS017,UPS051,AUO027 |
| Signal Electrical : | Input Current | 1.03/5.05/0.052/0.049mA (Typ.)(ICC/IDD/IGH/IGL) | Input Voltage | 3.3/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | TFT Specific Analog RGB | |||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 26 pins | ||||
| Lamp Features: | Lamp Shape | L shape | Lamp Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 10K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 6.0/6.5mA (Typ./Max.) | Input Voltage | 510/560V (Typ./Max.) | ||
| Frequency | 60/80KHz (Typ./Max.) | Turn-on Voltage | 1000/1300/1580V (Max.)(Ta=+25/0/-25℃) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
