Product Details:
|

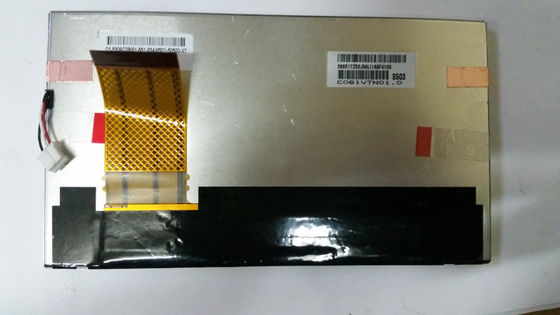

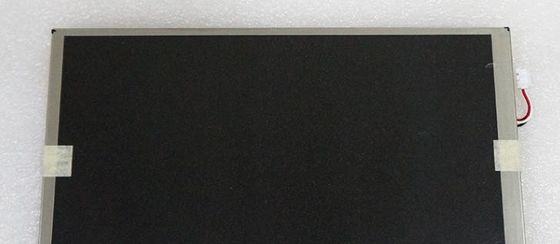

| MODEL NUMBER: | C061VTN01.0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 6.1INCH | RESOLUTION: | 800×480 RGB |
| BRIGHTNESS: | 560CD/M2 | TEMPERATURE RANGE: | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
| Highlight: | WLED LVDS AUO LCD Display,CCFL LVDS AUO TFT LCD |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| C061VTN01.0 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -30 ~ 85 °C | -40 ~ 95 °C | - | ||
| Used For : | ||||
| Specific Features : |
|
|||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 560 (Typ.) | 65/65/50/60 (Typ.)(CR≥10) | 12/18 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 700 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6535K | 262K (6-bit) | X:0.313; Y:0.323 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 65% | 84% | 66% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 67% | 48% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) | ||
| Panel Size : | 6.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×480 [WVGA] | RGB Vertical Stripe | 0.17025×0.15 [153PPI] | 0.05675×0.15 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 136.2(H) × 72(V) | 138.45(H) × 74.2(V) | 149(H) × 84.4(V) | 6.0/6.61 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 17:9 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 110±10g | - | Antiglare, Hard coating (3H) | ||
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Vertical Frequency : | 60Hz |
| Time Controller (T-CON) : | Need external T-CON |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.0/11/15/-8V (Typ.)(VDDIO/AVDD/VGH/VGL) | 3.0/28.6/0.13/0.13mA (Typ.)(IDDIO/AIDD/IGH/IGL) | 327.5mW (Typ.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VDDIO; 0.7VDDIO≤VIH≤VDDIO | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | FH12-50S-0.5SH | 0.5 mm | 50 pins | 1 pcs | ||
