Product Details:
|

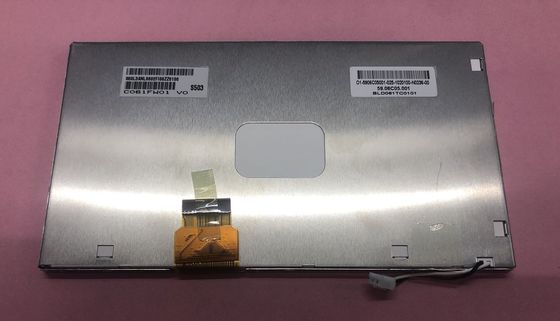

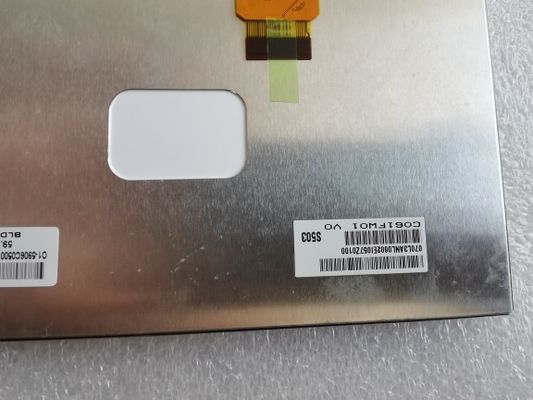

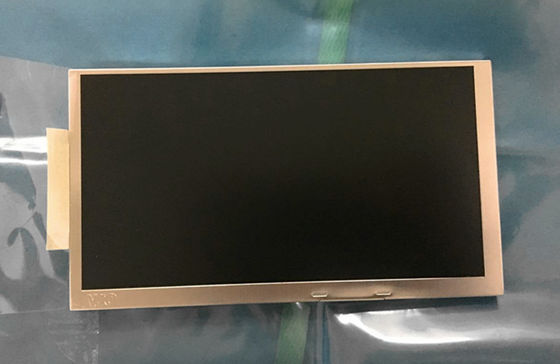

| MODEL NUMBER: | C061FW01 V0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 6.1INCH | RESOLUTION: | 480×234RGB |
| BRIGHTNESS: | 600CD/M2 | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
| High Light: | WLED LVDS AUO LCD Display,CCFL LVDS AUO TFT LCD |
||
| Basic Information : | Brand | Model | C061FW01 V0 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 6.1" | Alias | C061FW01 V.0 | |
| Environment : | Storage Temp. | -40 ~~ 95 °C | Operating Temp. | -30 ~~ 85 °C |
| RoHS | Vibration | - |
| Pixel Features : | Resolution | 480(RGB)×234 | Dot Pitch(mm) | 0.0945×0.3075 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2835×0.3075 (H×V) [88PPI] | |
| Mechanical Size : | Active Area(mm) | 136.08(H) × 71.955(V) | Bezel Area(mm) | 138.2(H) × 74.0(V) |
| Outline Dim.(mm) | 149(H) × 82.9(V) | Depth(mm) | 5.8±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 17:9 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 104±10.4g | Treatment | Antiglare (Haze 25%) |
| Basic Information : | Luminance(cd/m²) | 600 (Typ.) | Contrast Ratio | 300:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 60/60/45/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 15/20 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.330; Y:0.340 | Display Colors | Full color |
| Color Temperature | 5614K | White Uniformity | - |
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Time Controller (T-CON) : | Need external T-CON |
| Signal Electrical : | Voltage Supply | 5.0/5.0/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) | Current Supply | 3.0/12.0/0.5/0.5mA (Typ.)(ICC/AIDD/IGH/IGL) | ||
|---|---|---|---|---|---|---|
| Signal Type : | TFT Specific Analog RGB | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 30 pins | 0.5 mm | ||||
| Backlight Features: | Shape | 1 string | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 7S1P | Life Time | 10K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 25.2/28V (Typ./Max.) | Current Supply | 80mA (Typ.) | ||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | PHR-2 | 1 pcs | 2 pins | 2.0 mm | BLE-2PINS-AC | |
| Backlight Driver : | No | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 60 pcs / box | 10 Kgs | 520×340×250 mm (L×W×H) |
