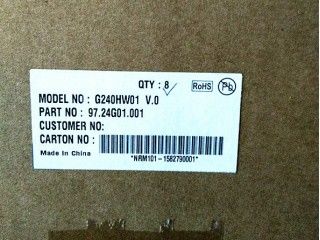

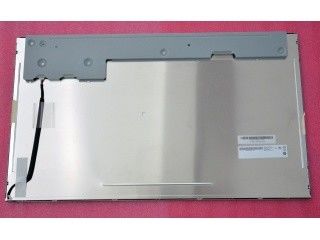

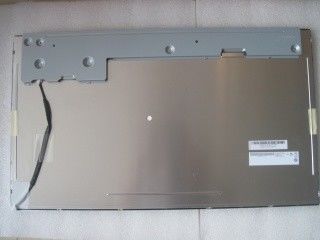

G240HW01 V0 AUO 24.0 WLED Backlight，With LED Driver，6/8 bit，Matte

G240HW01 V0 AUO 24.0 WLED Backlight，With LED Driver，6/8 bit，Matte
G240HW01 V0 AUO 24.0 WLED Backlight，With LED Driver，6/8 bit，Matte G240HW01 V0 AUO 24.0 WLED Backlight，With LED Driver，6/8 bit，Matte G240HW01 V0 AUO 24.0 WLED Backlight，With LED Driver，6/8 bit，Matte

Large Image :  G240HW01 V0 AUO 24.0 WLED Backlight，With LED Driver，6/8 bit，Matte

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: G240HW01 V0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 100PCS
Contact Now

G240HW01 V0 AUO 24.0 WLED Backlight，With LED Driver，6/8 bit，Matte

Description
MODEL NUMBER: G240HW01 V0 BRAND: AUO
RESOLUTION: 1920(RGB)×1080 [FHD] 91PPI BRIGHTNESS: 300 Cd/m² (Typ.)
TEMPERATURE RANGE: Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C Configuration: RGB Vertical Stripe
Highlight:

WLED LVDS AUO LCD Display

,

CCFL LVDS AUO TFT LCD

AUO G240HW01 V0 Application Details

Basic Information :
Brand

Model
G240HW01 V0
Type
a-Si TFT-LCD , LCM
Used For

Screen Size
24.0 inch
Alias
G240HW01 V.0
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS

Vibration
1.5G (14.7 m/s²)
Typical Features :

  •



AUO G240HW01 V0 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.09225×0.27675 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.27675×0.27675 (H×V) [91PPI]
Mechanical Size :
Active Area(mm)
531.36(H) × 298.89(V)
Bezel Area(mm)
535.36(H) × 302.89(V)
Outline Dim.(mm)
556(H) × 323.2(V)
Depth(mm)
17.0 (Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-M3) on left, right bezel
Other Spec :
Weight
2.30Kgs (Typ.)
Treatment
Antiglare, Hard coating (3H)



AUO G240HW01 V0 Optical Details

Basic Information :
Luminance(cd/m²)
300 (Typ.)
Contrast Ratio
5000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
AMVA3, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
16/9 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (8-bit)
Color Temperature
6485K
White Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
73%
sRGB
92% coverage
Adobe RGB
71% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO G240HW01 V0 Backlight Details

Backlight Features :
Type
WLED
Quantity
10S7P
Position
Edge light type (Bottom side)
Replacement
-
Shape
7 strings
Life Time
50K(Min.) (Hours)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
STM
MS24049HJ
1.25 mm
9 pins
1 pcs

Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
12.0V (Typ.)
Current Supply
2.0A (Typ.)
Consumption
24.0W (Typ.)



FAQ:

Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
