G185XW01 V1 AUO 15.0 WLED Backlight，With LED Driver，6/8 bit，Matte

G185XW01 V1 AUO 15.0 WLED Backlight，With LED Driver，6/8 bit，Matte
G185XW01 V1 AUO 15.0 WLED Backlight，With LED Driver，6/8 bit，Matte

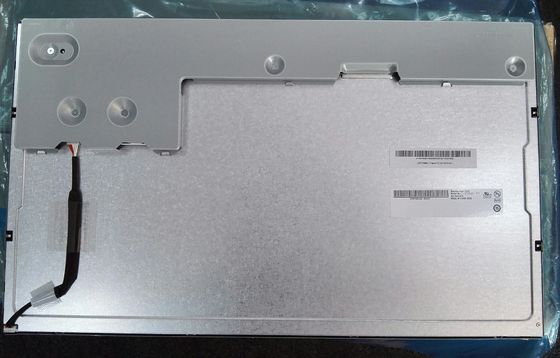

Large Image :  G185XW01 V1 AUO 15.0 WLED Backlight，With LED Driver，6/8 bit，Matte

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: G185XW01 V1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 100PCS
Contact Now

G185XW01 V1 AUO 15.0 WLED Backlight，With LED Driver，6/8 bit，Matte

Description
MODEL NUMBER: G185XW01 V1 BRAND: AUO
RESOLUTION: 1366(RGB)×768 (WXGA) 84PPI BRIGHTNESS: 300 Cd/m² (Typ.)
TEMPERATURE RANGE: Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C Configuration: RGB Vertical Stripe
Highlight:

WLED LVDS AUO LCD Display

,

CCFL LVDS AUO TFT LCD

AUO G185XW01 V1 Summary

The G185XW01 V1 (Alias: G185XW01 V.1) is a 18.5 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 60°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²).







AUO G185XW01 V1 Application Details

Basic Info :
Panel Brand

Panel Model
G185XW01 V1
Diagonal Size
18.5"
Application



Panel Type
a-Si TFT-LCD , LCM
Model Alias
G185XW01 V.1
Reliability :
Operating Temp.
0 ~ 60 °C
Storage Temp.
-20 ~ 60 °C
RoHS State

Vibration Rating
1.5G (14.7 m/s²)
Specific Features :
  •

AUO G185XW01 V1 Mechanical Details

Pixel Features :
Resolution
1366(RGB)×768, WXGA
Dot Pitch(mm)
0.100×0.300 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.300×0.300 (H×V) [84PPI]
Mechanical Size :
Active Area(mm)
409.8(H) × 230.4(V)
Bezel Area(mm)
413.4(H) × 234.0(V)
Outline Dim.(mm)
430.4(H) × 254.6(V)
Depth(mm)
16.4±0.5
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-M3) on left, right bezel
Other Spec :
Weight
1.82Kgs (Max.)
Treatment
Antiglare, Hard coating (3H)



AUO G185XW01 V1 Optical Details

Basic Information :
Luminance(cd/m²)
300 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
85/85/80/80 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
3.5/1.5 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
White Uniformity
1.43/1.54 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
66%
sRGB
88% coverage
Adobe RGB
68% coverage
DCI-P3
68% coverage
Rec.2020
49% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO G185XW01 V1 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type (Bottom side)
Replacement
Replaceable
Shape
-
Life Time
50K(Min.) (Hours)
Interface Features :
Position
Upper left corner
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
E&T
3808K-F05N-02R
1.25 mm
5 pins
1 pcs

Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
12.0V (Typ.)
Current Supply
0.9/1.1A (Typ./Max.)
Consumption
10.8/13.2W (Typ./Max.)



FAQ:



Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
